ASM Rebalance Too Slow? 3 Tips To Improve Rebalance Times

April 17, 2015 10 Comments

see-saw

I’ve run into a few customers recently who have had problems with their ASM rebalance operations running too slowly. Surprisingly, there were some simple concepts being overlooked – and once these were understood, the rebalance times were dramatically improved. For that reason, I’m documenting the solutions here… I hope that somebody, somewhere benefits…

1. Don’t Overbalance

Every time you run an ALTER DISKGROUP REBALANCE operation you initiate a large amount of I/O workload as Oracle ASM works to evenly stripe data across all available ASM disks (i.e. LUNs). The most common cause of rebalance operations running slowly that I see (and I’m constantly surprised how much I see this) is to overbalance, i.e. cause ASM to perform more I/O than is necessary.

It almost always goes like this. The customer wants to migrate some data from one set of ASM disks to another, so they first add the new disks:

alter diskgroup data
add disk  'ORCL:NEWDATA1','ORCL:NEWDATA2','ORCL:NEWDATA3','ORCL:NEWDATA4',
          'ORCL:NEWDATA5','ORCL:NEWDATA6','ORCL:NEWDATA7','ORCL:NEWDATA8'
rebalance power 11 wait;

Then they drop the old disks like this:

alter diskgroup data
drop disk 'DATA1','DATA2','DATA3','DATA4',
          'DATA5','DATA6','DATA7','DATA8'
rebalance power 11 wait;

Well guess what? That causes double the amount of I/O that is actually necessary to migrate, because Oracle evenly stripes across all disks and then has to rebalance a second time once the original disks are dropped.

This is how it should be done – in one single operation:

alter diskgroup data
add disk  'ORCL:NEWDATA1','ORCL:NEWDATA2','ORCL:NEWDATA3','ORCL:NEWDATA4',
          'ORCL:NEWDATA5','ORCL:NEWDATA6','ORCL:NEWDATA7','ORCL:NEWDATA8'
drop disk 'DATA1','DATA2','DATA3','DATA4',
          'DATA5','DATA6','DATA7','DATA8'
rebalance power 11 wait;

A customer of mine tried this earlier this week and reported back that their ASM rebalance time had reduced by a factor of five!

By the way, the WAIT command means the cursor doesn’t return until the command is finished. To have the command essentially run in the background you can simply change this to NOWAIT. Also, you could run the ADD and DROP commands separately if you used a POWER LIMIT of zero for the first command, as this would pause the rebalance and then the second command would kick it off.

2. Power Limit Goes Up To 1024

Simple one this, but easily forgotten. From the early days of ASM, the maximum power limit for rebalance operations was 11. See here if you don’t know why.

From 11.2.0.2, if the COMPATIBLE.ASM disk group attribute is set to 11.2.0.2 or higher the limit is now 1024. That means 11 really isn’t going to cut it anymore. If you are asking for full power, make sure you know what number that is.

3. Avoid The Compact Phase (for Flash Storage Systems)

An ASM rebalance operation comprises three phases, where the third one is the compact phase. This attempts to move data as close as possible to the outer tracks of the disks ASM is using.

Did you spot the issue there? Disks. This I/O-heavy phase is completely pointless on a flash system, where I/O is served evenly from any logical address within a LUN.

You can therefore avoid that potentially-massive I/O hit by disabling the compact phase, using the underscore parameter _DISABLE_REBALANCE_COMPACT=TRUE. Remember that you need to get Oracle Support’s permission before setting underscore parameters! Point your SR in the direction of the following My Oracle Support note:

What is ASM rebalance compact Phase and how it can be disabled (Doc ID 1902001.1)

Unfortunately it appears the parameter was deprecated in 12c, so from now on you have to set the ASM diskgroup attribute “_rebalance_compact” to FALSE (note the opposite value to that set at the instance level!), for example:

ALTER DISKGROUP  SET ATTRIBUTE "_rebalance_compact”="FALSE";

If you want to know more about this topic (for example, what the first two rebalance phases are), or indeed anything about ASM in general, I highly recommend the legendary ASM blogger that is Bane Radulovic a.k.a. ASM Support Guy.

Conclusion

An ASM rebalance potentially creates a lot of I/O, which means you may need to wait for a long time before it finishes. For that reason, make sure you understand what you are doing and make every effort to perform only as much I/O as you actually need. Don’t forget you can use the EXPLAIN WORK command to gauge in advance how much work is required.

Happy rebalancing!

Advertisement

Filed under ASM, Blog, Database, Flash, Storage Tagged with , , ,

Paris Oracle Meetup (Jeudi 26 Mars 2015 @ 7pm)

March 23, 2015 3 Comments

A quick post to say that this week, on Thursday 26th, I will be giving a talk (in English!) on the subject of Flash for DBAs (and architects, designers, developers, managers etc) at the Paris Oracle Meetup:

global_197134042Flash for DBAs: A new technology is sweeping the world of storage. Flash, a type of non-volatile memory, is gradually replacing hard disk drives. It began in consumer electronic devices such as phones, cameras and tablets – then it moved into laptops in the form of SSDs. And now the last fortress of hard drives us under attack: the data centre. Find out what flash memory is, what it means for your Oracle databases and how to use it to give you performance that was never possible in the old days of disk…

If you are in the Paris area please do feel free to register here:

http://www.meetup.com/parisoracle/events/221062002/

Filed under Blog Tagged with ,

Oracle Exadata X5: The Road To Ten Billion Dollars

February 4, 2015 21 Comments

money

Now that the dust has settled on the announcement of Oracle’s new Exadata X5 Database Machine, I’ve been doing some research in order to update my History of Exadata post (it’ll be ready soon). While reviewing the datasheets and other collateral for the X5 I was struck by the meteoric increase in one particular statistic: the number of processor cores on each database server. Oracle is riding that Moore’s Law train all the way to the bank.

The thing is, the number of cores per database server is directly linked to the cost of licensing the Oracle Database for each Exadata machine – and that means trouble if you are the one paying the bills. Assuming you buy a full rack – and that you license every core in every database server (which is the most common choice, since only a very brave minority would consider the Oracle VM Trusted Partitions option), your license cost has been increasing by 50% for each of the last two Exadata releases (X3-2 to X4-2 to X5-2). Let’s have a look at that in graphical form (click on the image to enlarge):

Exadata DB License Cost Comparison X2-2 to X5-2

Let’s not forget here that I am only plotting the cost of licensing the database software. We are not taking into account the extra costs associated with paying for the hardware, licensing the storage servers or purchasing any of the pretty-much essential enterprise edition options such as Oracle RAC, partitioning, multitenancy or the diagnostic pack license. Nor are we considering the infamous 22% per annum software support costs. I’m also using the list price – which you would never expect to pay – but even if you used discounted prices the percentage increases would remain the same.

Anyway, after crunching the numbers it turns out there is good news and bad news…

Good News for Oracle

The good news for Oracle is that if Exadata continues to increase the number of cores at the rate of 50% extra per release, the list price for licensing the database software on the future X23-2 model will be $10.1 billion:

Exadata DB License Cost Projection

There’s no doubt about it – this will pay for a lot of yachts.

Bad News for Oracle

There is a downside though. As Kevin Closson has already shown, Oracle appears to be having trouble balancing the I/O capabilities of the X5 against this tremendously-increased compute power. Even after abandoning previous claims that a memory hierarchy with “low-cost disk” as the bottom tier would bring the “highest performance at the lowest cost” to customers, the new Oracle Exadata X5 “Extreme Flash” model (because apparently flash on its own isn’t enough, it has to be extreme flash) struggles to deliver an improvement in IOPS per flash device, as Kevin has shown.

exadata-x5-ef-price-per-io

Excerpt from the Oracle Exadata X5-2 Press Release

You wouldn’t think this from reading the press release, which promises “breakthrough performance and price per I/O” (emphasis added by me). Price per I/O, eh? That sounds like we take the overall price and divide it by the number of IOPS the system can deliver, right?

So let’s do that. And to be generous, let’s only look at the database license cost (ignoring all those other costs again) and take the maximum IOPS number from the datasheets (which in most cases is for unrealistic, 100% read only, fully cached workloads). How will it look? I’ll overlay it as a line (in blue) on top of the first graph:

Exadata DB License Cost Comparison

Well it turns out that the price per I/O is actually falling: it’s down from $1.71 on the X4-2 (HP) model to $1.65 on the X5-2 EF. But three and a half percent is not much of an improvement considering the 50% extra on the price tag, is it? And as for offering a “breakthrough” price per I/O, the X2-2 was better at only $1.52 per I/O per second!

Summary

In my view, something is not right about the balance between compute and storage on the Exadata X5. It feels as though Oracle is bumping up the compute power faster than would be architecturally prudent because this results in a higher purchase price. Maybe I’m wrong – I have no insider knowledge and can only speculate… but when the Exadata X23-2 finally comes out in a couple of decades time, maybe we’ll know for sure.

Footnote

The comments section of this article makes for interesting reading, with responses from a number of Oracle employees – although not necessarily speaking on behalf of the mothership. The noteworthy (not to mention calm and measured) comments come from the Exadata Product Manager, Gurmeet Goindi. In addition I’d like to draw your attention to the following two URLs:

Filed under Blog, Database, Oracle Exadata Tagged with , ,

Oracle AWR Reports: When IOStats Lie

December 18, 2014 4 Comments

graph

If you’ve been unfortunate enough to follow my dithering on Twitter recently you’ll know that I’ve been lurching between thinking that there is and isn’t a problem with Oracle’s tracking of I/O statistics in its AWR reports.

I’m now convinced there is a problem, but I can’t work out what causes it… so step 1 is to describe the problem here, after which step 2 will probably be to sit back and hope someone far more intelligent than me will solve it.

But first some background:

AWR I/O Statistics

I’ve written about the I/O statistics contained in Oracle AWR Reports before, so I won’t repeat myself too much other than to highlight two critical areas which we’ll focus on today: Instance Statistics and IOStat Summaries. By the way, the format of AWR reports changed in 11.2.0.4 and 12c to include a new IO Profile section, but today we’re covering reports from 11.2.0.3.

First of all, here are some sensible statistics. I’m going to show you the IOStat by Function Summary section of a report from a real life database:

IOStat by Function summary
-> 'Data' columns suffixed with M,G,T,P are in multiples of 1024
    other columns suffixed with K,M,G,T,P are in multiples of 1000
-> ordered by (Data Read + Write) desc

                Reads:   Reqs   Data    Writes:  Reqs   Data    Waits:    Avg
Function Name   Data    per sec per sec Data    per sec per sec Count    Tm(ms)
--------------- ------- ------- ------- ------- ------- ------- ------- -------
Buffer Cache Re   14.9G   504.1 4.22491      0M     0.0      0M 1690.3K     0.0
Direct Reads      12.2G     3.5 3.45612      0M     0.0      0M       0     N/A
DBWR                 0M     0.0      0M    7.9G   186.6 2.25336       0     N/A
Others             4.2G    12.1 1.18110    3.6G     2.5 1.03172   41.9K     0.1
LGWR                 1M     0.0 .000277    5.8G    11.9 1.65642   17.4K     1.0
Direct Writes        0M     0.0      0M      4M     0.0 .001110       0     N/A
TOTAL:            31.2G   519.7 8.86241   17.4G   201.0 4.94263 1749.6K     0.0
          -------------------------------------------------------------

This section of the report is breaking down all I/O operations into the functions that caused them (e.g. buffer cache reads, direct path reads or writes, redo log writes by LGWR, the writing of dirty buffers by DBWR and so on). Let’s ignore that level of detail now and just focus on the TOTAL row at the bottom.

To try and make this simple to describe, I’ve gone a bit crazy with the colours. In green I’ve highlighted the labels for reads and writes – and now let’s walk through the columns:

  1. The first column is the function name, but we’re just focussing on TOTAL
  2. The second column is the total amount of reads that happened in this snapshot: 31.2GB
  3. The third column is the average number of read requests per second, i.e. 519.7 read IOPS
  4. The fourth column is the average volume of data read per second, i.e. 8.86 MB/sec read throughput
  5. The fifth column is the total amount of writes that happened in this snapshot: 17.4GB
  6. The sixth column is the average number of write requests per second, i.e. 201 write IOPS
  7. The seventh column is the average volume of data written per second, i.e. 4.94 MB/sec write throughput
  8. The eighth and ninth columns are not of interest to us here

The whole section is based on the DBA_HIST_IOSTAT_FUNCTION view. What we care about today is the IOPS figures (shown in red) and the Throughput figures (shown in blue). Pay attention to the comments in the view header which show that Data columns (including throughput) are multiples of 1024 while other columns (including IOPS) are multiples of 1000. It’s interesting that the two throughput values are obviously measured in MB/sec and yet are missing the “M” suffix – I assume this “falls off the end” of the column because of the number of decimal places displayed.

Now that we have these figures explained, let’s compare them to what we see in the Instance Activity Stats section of the same AWR report:

Instance Activity Stats
-> Ordered by statistic name

Statistic                                     Total     per Second     per Trans
-------------------------------- ------------------ -------------- -------------
physical read IO requests                 1,848,576          513.3         121.5
physical read bytes                  29,160,300,544    8,096,201.8   1,917,053.5
physical read total IO requests           1,892,366          525.4         124.4
physical read total bytes            33,620,594,176    9,334,578.5   2,210,281.7
physical read total multi block              17,096            4.8           1.1
physical reads                            3,559,607          988.3         234.0

physical write IO requests                  671,728          186.5          44.2
physical write bytes                  8,513,257,472    2,363,660.5     559,677.7
physical write total IO requests            723,348          200.8          47.6
physical write total bytes           18,657,198,080    5,180,071.5   1,226,559.6
physical write total multi block             26,192            7.3           1.7
physical writes                           1,039,216          288.5          68.3

For this section we care about the per Second column because both IOPS and Throughput are measured using units per second. For both reads and writes there are two sets of statistics: those with the word total in them and those without. You can find the full description of 11gR2 statistics in the documentation, but the difference between the two is best summed up by this snippet which describes physical read total bytes:

Total size in bytes of disk reads by all database instance activity including application reads, backup and recovery, and other utilities. The difference between this value and “physical read bytes” gives the total read size in bytes by non-application workload.

I’ve underlined non-application workload here because this is critical. If you merely look at the Load Profile section at the top of an AWR report you will only see values for “application workload” I/O but this does not include stuff like RMAN backups, archive logging and so on… important stuff if you care about the actual I/O workload. For this reason, we only care about the following four statistics:

  1. physical read total IO requests (per second) = the average number of read IOPS
  2. physical read total bytes (per second) = the average read throughput in bytes per second
  3. physical write total IO requests (per second) = the average number of write IOPS
  4. physical write total bytes (per second) = the average write throughput in bytes per second

Again I’ve coloured the IOPS figures in red and the throughput figures in blue.

Tying It Together

Now that we have our two sets of values, let’s just compare them to make sure they align. The IOPS figures do not require any conversion but the throughput figures do: the values in the Instance Activity Stats section are in bytes/second and we want them to be in MB/second so we need to divide by 1048576 (i.e. 1024 * 1024).

IOStat by Function

Instance Activity Stats

Error Percentage

Read IOPS

519.7

525.4

1.09%

Write IOPS

201.0

200.8

0.10%

Read Throughput

8.86241 MB/sec

9,334,578.5 bytes/sec

8.90215 MB/sec

0.45%

Write Throughput

4.94263 MB/sec

5,180,071.5 bytes/sec

4.94010 MB/sec

0.05%

I’ve calculated the error percentages here to see how far the figures vary. It is my assumption that the Instance Activity Stats are accurate and that any margin of error in the IOStat figures comes as a result of sampling issues. The highest error percentage we see here is just over 1%, which is hardly a problem in my opinion.

Don’t Believe The Stats

So far I have no complaints about the matching of statistics in the AWR report. But now let me introduce you to the AWR report that has been puzzling me recently:

IOStat by Function summary
-> 'Data' columns suffixed with M,G,T,P are in multiples of 1024
    other columns suffixed with K,M,G,T,P are in multiples of 1000
-> ordered by (Data Read + Write) desc

                Reads:   Reqs   Data    Writes:  Reqs   Data    Waits:    Avg
Function Name   Data    per sec per sec Data    per sec per sec Count    Tm(ms)
--------------- ------- ------- ------- ------- ------- ------- ------- -------
Direct Reads       3.8T 2.7E+04    3.2G    405M     3.6 .335473       0     N/A
Direct Writes        0M     0.0      0M  164.5G  1159.0 139.519       0     N/A
Buffer Cache Re   63.2G  3177.6 53.6086      0M     0.0      0M 3292.5K    23.4
DBWR                 0M     0.0      0M      2G    45.3 1.71464       0     N/A
LGWR                 0M     0.0      0M    485M    19.2 .401739   19.7K     0.9
Others             220M    12.3 .182232     26M     0.7 .021536   15.6K    34.5
Streams AQ           0M     0.0      0M      0M     0.0      0M       1     9.0
TOTAL:             3.9T 3.0E+04    3.3G  167.4G  1227.8 141.992 3327.8K    23.3
          -------------------------------------------------------------

Instance Activity Stats
-> Ordered by statistic name

Statistic                                     Total     per Second     per Trans
-------------------------------- ------------------ -------------- -------------
physical read total IO requests          35,889,568       29,728.4       3,239.4
physical read total bytes         4,261,590,852,608 3.52999864E+09 3.8465483E+08

physical write total IO requests          1,683,381        1,394.4         151.9
physical write total bytes          205,090,714,624  169,882,555.1  18,511,663.0

Again I’ve coloured the IOPS measurements in red and the throughput measurements in blue. And as before we need to convert the bytes per second values shown in the Instance Activity Stats section to MB/sec as shown in the IOStat by Function Summary section.

IOStat by Function

Instance Activity Stats

Error Percentage

Read IOPS

30,000

29,728.4

0.91%

Write IOPS

1227.8

1,394.4

11.95%

Read Throughput

3.3 GB/sec

3,379.2 MB/sec

3,529,998,640 bytes/sec

3,366.469 MB/sec

0.38%

Write Throughput

141.992 MB/sec

169,882,555.1 bytes/sec

162.01263 MB/sec

12.36%

Do you see what’s bugging me here? The write values for both IOPS and throughput are out by over 10% when I compare the values in IOStat by Function against the Instance Activity Stats. Ten percent is a massive margin of error at this level – we’re talking 20MB/sec. To translate that into something easier to understand, if 20MB/sec were sustained over a 24 hour period it would amount to over 1.6TB of data. I’ve seen smaller data warehouses.

So why is this happening? Unfortunately I don’t have access to the system where this AWR report was created, so I cannot tell if, for example, there was an instance restart between the start and end snapshots (although the elapsed time of the report was just 20 minutes so it seems unlikely).

The truth is I don’t know. Which is why I’m writing about it here… if you think you have the answer, or just as importantly if you see the same behaviour, let me know!

Filed under AWR Reports, Blog, Database, Storage Tagged with , ,

New Cookbook: Oracle Linux 6 Update 5 within an Oracle VM Template

December 17, 2014 Leave a comment

Oracle-VMI’ve posted a new installation cookbook for using Oracle within a virtual machine running on Oracle VM. Surprisingly, I was unable to come up with a satisfactory method of accessing external storage that did not involve the use of Oracle ASMLib…

Oracle Linux 6 Update 5 within an Oracle VM Template

Filed under Blog, Cookbooks, Database, Flash, Linux, Storage Tagged with , , ,

Oracle AWR Reports: When Averages Lie

December 2, 2014 10 Comments

truth-sign

I was recently contacted by a customer who runs a busy ERP system on their Oracle database. Their users have been screaming for some time about unpredictable performance, where application screens which would usually open in under a second suddenly take an age. ERP systems are legendary for this, of course, because as each screen loads the application tends to fire off a glut of queries to populate all the various fields, graphs and so on. When performance problems strike, the elapsed time for each query rises, which usually results in “stuff going slowly”. And unfortunately, because of something known to psychologists as the availability heuristic, users tend not to remember the times when performance was acceptable… just the occasions when they were left frustrated.

Initial Investigation

The first thing I ask for in situations like this is a set of AWR reports. Customers are generally happy to part with such information, whereas the running of bespoke SQL scripts to harvest data can often cause delays as the scripts have to be investigated and tested. AWR reports, I’m sure you know, contain information about the behaviour and performance of the database between two points in time – and much of the data is averaged. For this reason, I always always ask for a set of multiple, consecutive reports covering the problematic period where each report covers no more than one hour. I’d prefer less than one hour per report, but the default configuration of Oracle results in hourly snapshots so that’s usually the limit… as it was for this customer.

As a first pass, I like to run the AWR reports through my awr-parser.sh script. This parses them all and produces a CSV file as output. This can then be easily used to graph information such the amount of time spent working on CPU versus time spent waiting on I/O requests to complete. Often this is enough to get a basic idea of what’s happening….

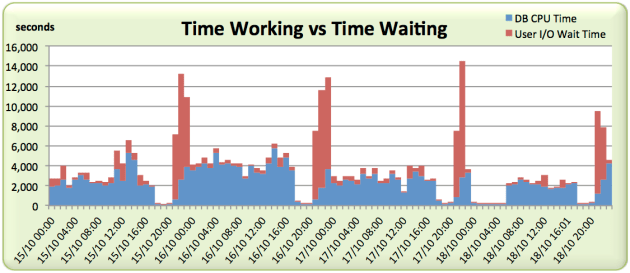

awr-averages-lie-work-vs-wait

In the above graph, each column shows data from a single (hourly) AWR report; blue represents DB CPU while red represents User I/O wait time. If we are looking to increase the user experience with low-latency storage then we would hope to find two things: a) lots of User I/O wait time, and b) average latency which is higher than we would expect a flash array to deliver.

Unfortunately, the first requirement isn’t really there in the above graph. There just isn’t enough red, except for peaks towards the end of the day where there appears to be some batch job or backup taking place. A peak at the AWR reports shows that this is in fact a scheduled job which performs an online rebuild of an index. With more capable storage we could make this go a lot faster, so would that perhaps help the customer?

Sadly, the answer was no, it wouldn’t. The customer specifically stated that it’s the online day where they struggle and not the index rebuild. Hmmm.

More Graphs

Let’s have a look at some of the other information that came out of the AWR reports to see if anything interesting shows up:

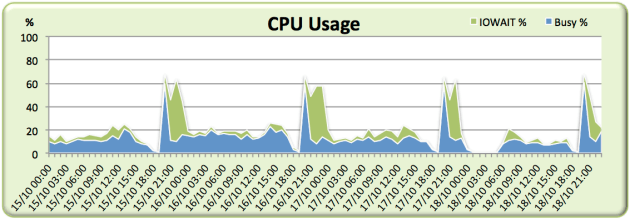

awr-averages-lie-cpu-utilization

Plenty of spare CPU capacity here. In fact, if you think about how much Oracle licenses cost per CPU – and how much CPU is not being used… it looks like this database server represents a significant over-investment.

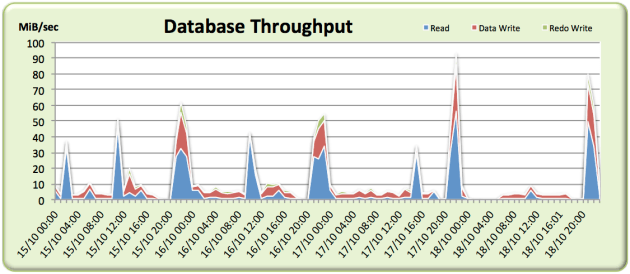

awr-averages-lie-throughput

Not much in the way of I/O… there are spikes here and there, including those for the index rebuilds, but overall the I/O rates are very low and for many samples we barely scratch 10MiB/sec.

So what have we got? A system which hardly performs any I/O and doesn’t seem to spend any time waiting on I/O during the period the users are complaining about. Time to go back to the customer and ask for some more detail…

Second Attempt

After a plea for more details, I received another batch of AWR reports covering a single 24 hour period, as well as the crucial information that complaints were received between 5am and 6am. Perfect. Let’s have a look at that throughput graph again:

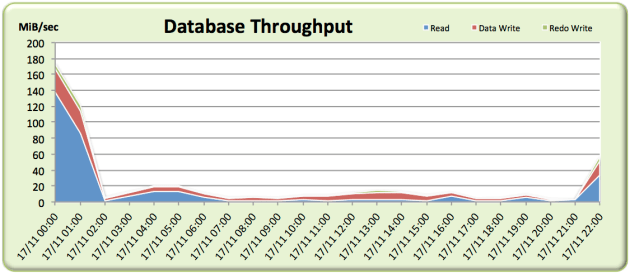

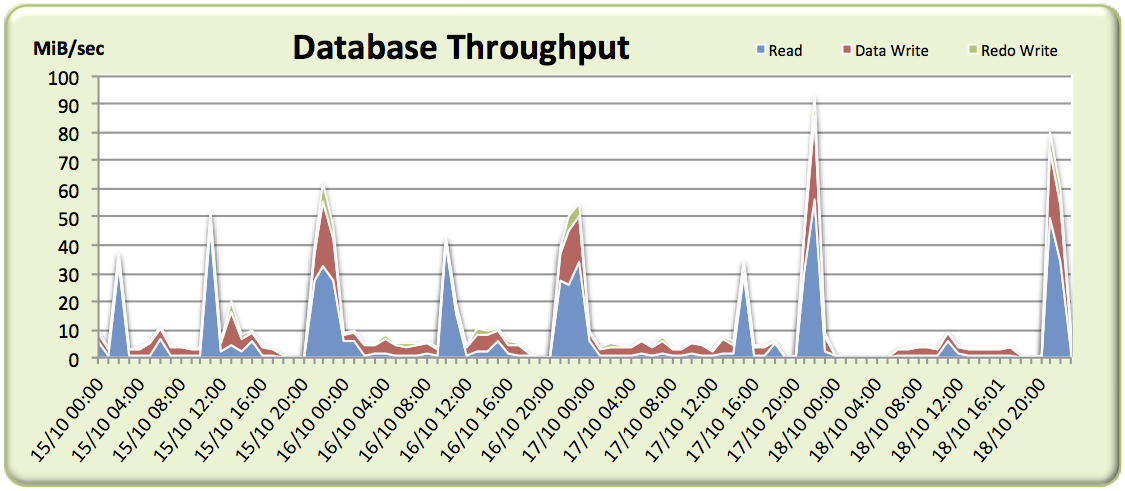

awr-averages-lie-2nd-throughput

Again, the throughput is very low – including around the critical 5am-6am period where complaints were received – which might fool us into thinking any problems are not related to the storage. But what about if we plot a graph of I/O Operations Per Second (IOPS)?

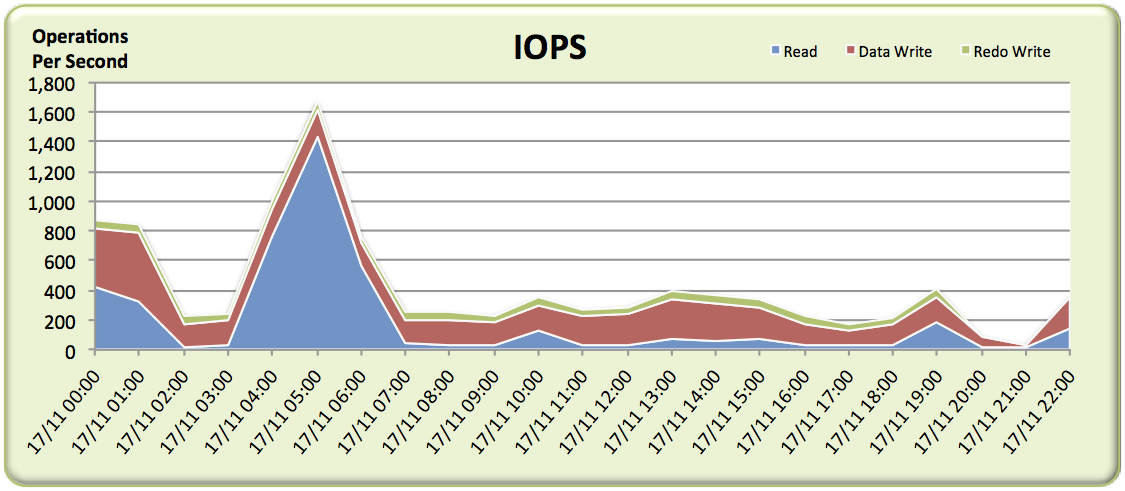

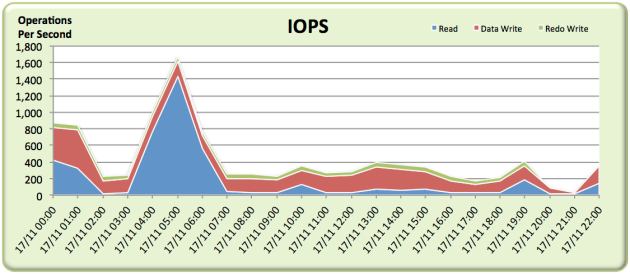

awr-averages-lie-2nd-iops

Bingo! There’s a big spike of read IOPS at exactly the time where problems were reported, which we can put down to a large amount of random physical reads. We know from the customer that they have a multi-controller monolithic disk array – the top of the range product from the world’s biggest disk array vendor. But it’s still a disk array, which means random I/O frequently results in high latency as somewhere a disk head has to move across the platter and then the platter has to rotate to the correct sector.

So we should be able to just check the average wait time for random physical reads (the wait event db file sequential read) and it will reveal itself as the problem. Right? We’ll expect to see waits in the region of 4-8ms or perhaps even worse if it’s really struggling.

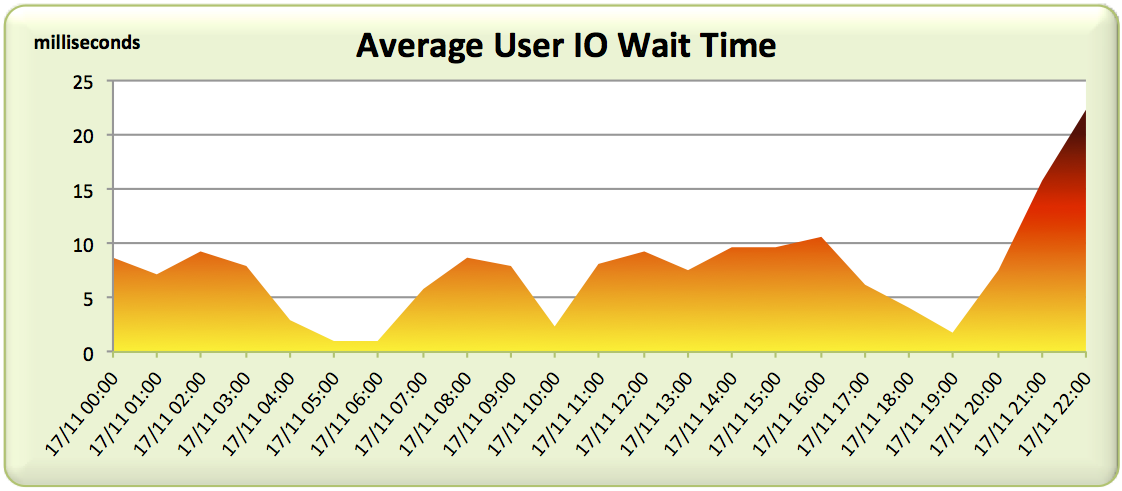

Here’s a graph of the average user I/O wait time seen across each AWR report – don’t forget we’re especially interested in the troublesome 5am-6am period:

awr-averages-lie-average-wait

Not what we expected. The 5am-6am slot is showing the best latency figures for the entire day! And this is when users are complaining?

Averages Lie

A disk array like this usually has a reasonably large DRAM cache and quite possibly a set of SSDs being used for further caching or tiering of data. If a physical read can be satisfied from the cache, it will likely be serviced in under a millisecond. But if we experience a cache miss, we’re forced to pay the penalty of mechanical latency and wait for many milliseconds. Thus there are two ranges of response times: sub-millisecond and many milliseconds.

Average wait times won’t show this because they are simply the average of all waits over the period of the AWR report (an entire hour in this case). What if many of the reads are cache hits but some still miss? Maybe it’s possible that there are enough misses to cause users to complain, but enough hits to make the average look acceptable?

Luckily, there is another section in the AWR report which can help here: the Wait Event Histogram. Here’s the histograms covering db file sequential read waits (random physical reads) for our 24 hour period:

$ cat header.txt; for file in `ls -1`; do
grep -A 40 "Wait Event Histogram" $file | grep "db file sequential read" | head -1
done
                                                    % of Waits
                                 -----------------------------------------------
                           Total
Event                      Waits  <1ms  <2ms  <4ms  <8ms <16ms <32ms  <=1s   >1s
-------------------------- ----- ----- ----- ----- ----- ----- ----- ----- -----
db file sequential read     3329  99.2    .8    .0    .0    .0    .0    .0    .0
db file sequential read     3487  99.4    .6    .0    .0
db file sequential read    35.4K  21.0   1.2   2.5  23.2  39.0  11.9   1.1
db file sequential read    82.9K  34.6   1.8   3.4  15.9  31.9  11.2   1.2
db file sequential read    428.6  67.4   2.1   2.5  10.1  15.2   2.4    .3
db file sequential read    4440.  92.6   1.3   1.2   1.9   2.6    .4    .0
db file sequential read    2013K  91.7   1.4   1.2   2.1   3.0    .5    .0
db file sequential read    131.7  45.7   1.1   2.8  15.6  29.1   5.4    .3
db file sequential read    76.3K  20.7   1.7   2.8  21.7  44.0   8.7    .4
db file sequential read    83.7K  31.1   1.1   2.4  16.6  38.1  10.0    .7
db file sequential read    430.4  79.6   1.5   2.0   4.4   9.3   2.9    .3
db file sequential read    106.6  32.3   1.7   3.0  15.4  36.1  10.3   1.2
db file sequential read      94K  23.8   1.8   2.7  16.6  41.7  12.1   1.2
db file sequential read    248.6  36.0   1.8   2.9  14.8  34.5   8.9   1.1
db file sequential read    202.5  31.9   1.4   2.0   9.0  38.0  16.1   1.6
db file sequential read    237.7  20.2   1.9   2.9  17.7  43.5  12.5   1.2
db file sequential read    49.5K   9.4   1.0   2.7  24.1  48.0  13.6   1.1
db file sequential read    75.6K  42.4   1.5   3.0  16.9  29.9   5.9    .5
db file sequential read    88.7K  61.4   1.3   2.5  12.4  18.2   3.8    .4
db file sequential read    644.3  84.3   1.0   1.5   4.3   7.3   1.5    .2
db file sequential read    61.3K  34.9   6.9   4.4  11.0  31.2  10.5   1.1
db file sequential read      330  96.7   3.1    .2    .0    .0
db file sequential read      12K  88.7   9.5   1.2    .4    .2    .1    .0    .0

Now the problem becomes clear. Although many reads are hitting the cache (<1ms bucket), there are an awful lot that are missing. The <2ms and <4ms buckets are virtually empty and then around <8ms we start to see big numbers again. Those are cache misses which incur the penalty of seek time on a hard disk drive somewhere in the array.

What’s more, it’s clear that the array is under some pressure because in many of the AWR reports there are substantial waits in the <16ms and above buckets. I’ve highlighted in red the occasions where over one third of read requests took over 8ms. That’s exactly the sort of behaviour that is making people replace disks with flash.

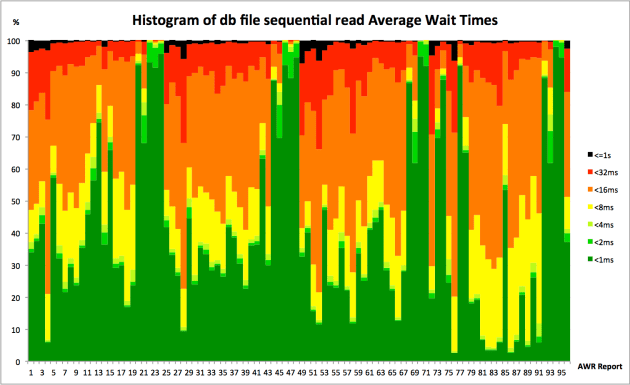

Let’s visualise the above data. I’ve gone back to the older set of AWR reports and graphed the histogram buckets to see if we can get a feel for the distribution of waits:

awr-averages-lie-random-read-histogram

As you can see, I’ve tried to go for a heat map-style colour scheme, with green indicating cache hits on the storage array and the colours moving from yellow through orange to red indicating cache misses which result in disk drive seek time. There are also some real outliers in black where requests took over one thousand milliseconds to be serviced (ouch).

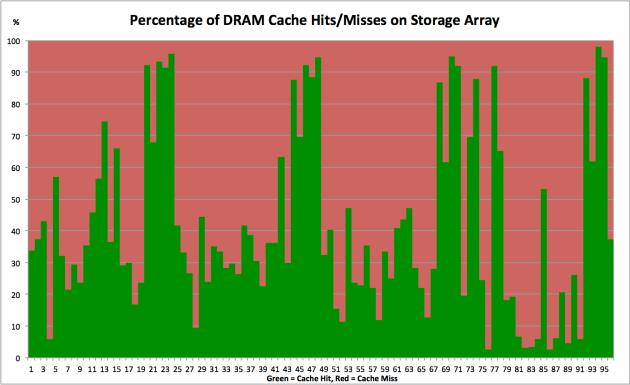

Another way to look at it is to make the picture clearer by reducing the detail. In the graph below I’ve simply assumed that everything sub-millisecond is a storage array cache hit and everything else is a miss:

awr-averages-lie-cache-hits-and-misses

Clearly there are a lot of physical reads paying the price of mechanical latency here.

Conclusion

What this customer does next is up for debate – there are more than just technical issues to consider. But the point of this post is to illustrate that while average wait times are great for getting a rough feel of how a system is behaving, they also offer huge scope to lose details. And sometimes those details are important. The devil, as they say, is truly in the detail…

Update: January 2015 – I have now added the ability to read Wait Event Histograms to my awr-parser.sh script which you can find on my Useful Scripts page…

Filed under AWR Reports, Blog, Database, Storage Tagged with , ,

Oracle, Parallelism and Direct Path Reads… on Flash

September 3, 2014 2 Comments

3000-open-case

Guest Post

This is another guest post from my buddy Nate Fuzi, who performs the same role as me for Violin but is based in the US instead of EMEA. Because he’s an American, Nate believes that “football” is played using your hands and that the ball is actually egg-shaped. This is of course ridiculous, because as the entire rest of the world knows, this is football whereas the game Nate is thinking of is actually called “HandEgg”. Now that we’ve cleared that up, over to you, Nate:

Lately, I’ve been running into much confusion around Oracle’s direct path IO functionality (11g+) and, unusually, not all of that confusion is my own. There is a perplexing lack of literature and experimentation with direct path IO on the Internet today. Seriously, I’ve looked. I decided I needed to better understand this event and its timing in order to properly extend suggestions to customers. I set about trying to prove some things I thought I knew, and I managed to confirm several suspicions but also surprised myself with some unexpected results. I’d like to share these in hopes of clarifying this event for everyone in practical terms.

Direct Path IO Background

To set the stage a bit, at the highest level, Oracle created the direct path IO event to describe an IO executed by an Oracle process that reads into (or writes from) the process global area (think of this as the session’s private memory) directly from (to) storage, bypassing the Oracle buffer cache. The rationale is this: full table scans of large tables into the buffer cache consume a lot of space, pushing out likely useful buffers in favor of buffers unlikely to be needed again in the near future. Reading directly into the process global area instead of the shared global area keeps full table scans from polluting the buffer cache and diminishing its overall effectiveness. Since the direct path IO is used for full scanning large objects, it looks to the database’s DB_FILE_MULTIBLOCK_READ_COUNT (henceforth referred to as DBMRC) setting for guidance on the size of IO calls to issue.

Makes sense. But what’s been confusing me is the apparently inconsistent performance of direct path reads and writes, even against Violin’s all-flash arrays. With random and other multi-block IO events showing very low, consistent performance, direct path reads can still be all over the board. How is that? Is it truly impacting performance? How can I make it better, or should I even try? After seeing this at a number of customer installations, I decided to run some tests on a smallish lab server attached to a single Violin array.

The Setup

I have a test database with a number of tables almost exactly 125GB in size full of randomized data. Full-scanning one of these tables via “select count(*)” was plenty to exercise the direct path read repeatedly, varying parallelism and DBMRC. My goal was to see the effect of these settings on both elapsed time and perceived latency. With an 8K database block size (RHEL 6.3, Oracle 12.1.0.1, ASM), I ran the test with DBMRC set to 4, then 8, 16, and finally 128. I ran each test with no parallelism, then with “parallel 16” hinted. So what did I see?

Test Results

direct-path-read-testing

Note that elapsed times represent the time my query returned to the SQL*Plus prompt with the “set timing on” directive applied to my session and are not 100% representative of time spent on the database but are close enough for my purposes. Total direct path read (DPR) time was pulled from the respective AWR report after execution finished. I asterisked the Physical Read Requests column because some of the reports showed 0 physical reads for the test SQL, while it was clear from the total physical reads that my read operation was the only possible culprit; therefore I felt justified in attributing that total (minus a few here and there from the AWR snapshotting process) to the test SQL. Note also that the best elapsed time was achieved with the lowest DBMRC and parallel 16. Worst time by far was also obtained with DBMRC set to 4 but without parallelism—although it accumulated the least amount of wait time on DPR. In general, throwing more cores at the problem improved performance hugely; not surprising, but noteworthy. We know that flash does not benefit from multi-block IO as a rule: at the lowest level, every IO is effectively a random IO, and larger blocks / groups of blocks are fetched independently, assembled, and returned to the caller as a single unit. However, there is a definite overhead in issuing IO requests, waiting for the calls to return, and consuming the requested data. This is evidenced by the high elapsed time for the single-threaded run with DBMRC set to 4: the least amount of reported IO wait time still contributed to the longest overall elapsed time.

So what do these values tell us? For one thing, parallelism is your friend. One core performing a FTS just isn’t going to get the job done nearly as quickly as multiple cores. Also, parallelism vastly trumps DBMRC as a tool for improving performance on flash when CPU resources are available. Performance between parallel processing runs was within 2%, no matter what the DBMRC setting. This I expected, having come into the testing with the assumption that DBMRC was irrelevant when working with flash. I was surprised at the exceedingly high elapsed time with the single-threaded query using small DBMRC. I would expect that to be higher than the others, but not nearly 3X longer than the single-threaded run with DBMRC at 128.

These revelations are mildly interesting, but what I find much more curious is the difference in reported DPR latency. Certainly, a highly parallel execution can accumulate more database time than wall clock time for any event. But we can tell from the elapsed times that, when we’re not starving the database for parallelism, DBMRC is practically meaningless when applied to flash. Yet the calculation of the average latency of the event is mysterious in that 1) 16 threads operating with DBMRC of 128 experiences roughly 4X the number of waits the single-threaded execution performs; 2) it does so apparently at about 13X the average latency of the single-threaded run; and 3) it racks up about 51X the amount of total DPR wait time.

What’s worse is that DPR stats are very strangely represented in the Tablespace IO stats section of the report. Here’s the snippet from test run #2:

                     Av       Av     Av      1-bk  Av 1-bk          Writes   Buffer  Av Buf
Tablespace   Reads   Rds/s  Rd(ms) Blks/Rd   Rds/s  Rd(ms)  Writes   avg/s    Waits  Wt(ms)
---------- ------- ------- ------- ------- ------- ------- ------- ------- -------- -------
DEMO       4.1E+06  49,395     0.0     4.0       2     0.0       0       0        0     0.0

We have to cut Oracle some slack on the Av Rds/s value here because it’s now averaging over the time it took me to start the test after my initial snapshot, then realize the test was done and execute another AWR snapshot to end the reporting period. Fine. But an average read time of 0.0ms?! Clearly, Oracle is recording some number of reads, but it’s not reporting timing on them at all in this section of the report. We have to look to the SQL Ordered by Physical Reads (Unoptimized) section of the report to confirm it’s actually doing a relevant number of IO requests:

-> Total Physical Read Requests:       4,092,389
-> Captured SQL account for    0.0% of Total
-> Total UnOptimized Read Requests:       4,092,389
-> Captured SQL account for    0.0% of Total
-> Total Optimized Read Requests:               1
-> Captured SQL account for    0.0% of Total

[some lines removed]

UnOptimized   Physical              UnOptimized
  Read Reqs   Read Reqs Executions Reqs per Exe   %Opt %Total    SQL Id
----------- ----------- ---------- ------------ ------ ------ -------------
          0           0          1          0.0    N/A    0.0 4kpvpt49hm3nf
Module: SQL*Plus
   PDB: DEMO
select /*+ parallel 16 */ count(*) from demo.length100_1

Oh, wait.  Oracle doesn’t credit my query with any physical read requests.  I have to look at the total just above in the report, and see that only the AWR snapshot performed any other IO on the system, and subtract that from the total.  Sigh.  At least ~4.1M reads at 32KB comes close to 125GB.

So what gives, Oracle?  I’ve read some Oracle notes and other blogs on the subject of DPR, and they suggest the wait event is not necessarily triggered when the IO call is initially issued, but instead when the session decides it needs all outstanding DPR IOs it has issued to complete before moving on—or it fills up all its “slots” and has to wait for those to free up.  Thus the under-reporting of the actual number of DPR waits and the artificially high wait time for each of those waits:  fewer waits, along with potentially many IO requests outstanding when the wait is triggered and timing starts.  But nowhere in all of this is there a set of numbers that I can trust to accurately describe my DPR performance.  The fact that DPR IO is completely left out of tablespace timings is seriously troubling:  we trust these stats to determine “hot” tablespaces and under-performing mount points.  This throws all kinds of doubt into the mix.

What can I say about Oracle’s DPR at this point?  While it works just fine and serves its purpose, the instrumentation appears to be lacking, even in Oracle 12.1.  After this testing, I feel even more confident telling customers to ignore the latency reported for this event—at least for now.  And I’ve confirmed my belief that, with any sort of parallelism enabled on your database, DBMRC is largely irrelevant for flash storage and only adds a mystery factor to reported latencies.  Yes, setting this to a low value will affect costing of FTS vs. index access, so you should verify that plans currently employing FTS that you want to remain that way still do.  This is easy enough with an alter session and explain plan.  With that, Oracle, the ball is in your court:  please define your terms, fix your instrumentation around DPR, or tell customers to stop worrying about DPR latencies.  Meanwhile, I’m going to advise people who are otherwise happy with their performance but want better latency numbers in their reports to set DBMRC lower and get on with their lives.

Filed under Blog, Database, Flash, Storage Tagged with , ,

Viewing ASM trace files in VIM: Which Way Do You Use?

August 20, 2014 2 Comments

cafepress_womens_cap_sleeve_tshirt

A couple of people have asked me recently about a classic problem that most DBAs know: how to view ASM trace files in the VIM editor when the filenames start with a + character. To my surprise, there are actually quite a few different ways of doing it. Since it’s come up, I thought I’d list a few of them here… If you have another one to add, feel free to comment. I know that most people reading this already have an answer, I’m just interested in who uses the most efficient one…

The Problem

VIM is a text editor used in many different operating systems. You know the one, it’s incredibly powerful, utterly incomprehensible to the newcomer… and will forever have more options than you can remember. I mean, just check out the cheat sheet:

People love or hate vim (I love it), but it’s often used on Linux systems simply because it’s always there. The problem comes when you want to look at ASM trace files, because they have a silly name:

oracle@server3 trace]$ pwd
/u01/app/oracle/diag/asm/+asm/+ASM/trace
[oracle@server3 trace]$ ls -l +ASM_ora_27425*
-rw-r----- 1 oracle oinstall 20625 Aug 20 15:42 +ASM_ora_27425.trc
-rw-r----- 1 oracle oinstall   528 Aug 20 15:42 +ASM_ora_27425.trm

Oracle trace files tend to have names in the format <oracle-sid>-<process-name>-<process-id>.trc, which is fine until the Oracle SID is that of the Automatic Storage Management instance, i.e. “+ASM”.

It’s that “+” prefix character that does it:

[oracle@server3 trace]$ vim +ASM_ora_27425.trc

Error detected while processing command line:
E492: Not an editor command: ASM_ora_27425.trc
Press ENTER or type command to continue

Why does this happen? Well because in among the extensive options of vim are to be found the following:

[oracle@server3 trace]$ man vim
...
OPTIONS
       The  options may be given in any order, before or after filenames.  Options without an argument can be combined after a
       single dash.

       +[num]      For the first file the cursor will be positioned on line "num".  If "num" is missing, the  cursor  will  be
                   positioned on the last line.

       +/{pat}     For  the first file the cursor will be positioned on the first occurrence of {pat}.  See ":help search-pat-
                   tern" for the available search patterns.

       +{command}
...

So… the plus character is actually being interpreted by VIM as an option. Surely we can just escape it then, right?

[oracle@server3 trace]$ vim \+ASM_ora_27425.trc

Error detected while processing command line:
E492: Not an editor command: ASM_ora_27425.trc
Press ENTER or type command to continue

Nope. And neither single nor double quotes around the filename work either. So what are the options?

Solution 1: Make Sure The “+” Isn’t The Prefix

Simple, but effective. If the + character isn’t leading the filename, VIM won’t try to interpret it. So instead of a relative filename, I could use the absolute:

[oracle@server3 trace]$ vi /u01/app/oracle/diag/asm/+asm/+ASM/trace/+ASM_ora_27425.trc

Or even just use a ./ to denote the current directory:

[oracle@server3 trace]$ vi ./+ASM_ora_27425.trc

Solution 2: Double Dash

Even simpler, but less well known (I think?) is the double-dash or hyphen option. If you browse the VIM man page a little further on, you’ll find this:

[oracle@server3 trace]$ man vim
...
 --          Denotes  the end of the options.  Arguments after this will be handled as a file name.  This can be used to
                   edit a filename that starts with a ’-’.
...

And it works perfectly:

[oracle@server3 trace]$ vi -- +ASM_ora_27425.trc

Solution 3: Use Find and -Exec

Another, slightly messy option is to use the find command to send the file to VIM. I know people who still do this, despite it being more work than the other options – sometimes a lazy hack can become unconscious habit:

[oracle@server3 trace]$ find . -name +ASM_ora_27425.trc -exec vi {} \;

In fact, I actually know somebody who used to look up the file’s inode number and then pass that into find:

[oracle@server3 trace]$ ls -li +ASM_ora_27425*
138406 -rw-r----- 1 oracle oinstall 20625 Aug 20 15:42 +ASM_ora_27425.trc
138407 -rw-r----- 1 oracle oinstall   528 Aug 20 15:42 +ASM_ora_27425.trm
[oracle@server3 trace]$ find . -inum 138406 -exec vi {} \;

Luckily nobody will ever know who that somebody is*.

Solution 4: Rename It

My least favourite option, but it’s actually quite efficient. Simple create a copy of the file with a new name that doesn’t contain a plus – luckily the cp command doesn’t care about the + prefix:

[oracle@server3 trace]$ cp +ASM_ora_27425.trc me.trc
[oracle@server3 trace]$ vi me.trc

Of course, you’ll want to tidy up that new file afterwards and not just leave it lying around… won’t you?

Less Is More

Maybe you’re not the sort of person that likes to use VIM. Maybe you prefer the more basic OS tools like cat (which works fine on ASM trace files), or more (which doesn’t), or even less.

In fact, less has pretty much the same options as VIM, which means you can use all of the above solutions with it. If you are using more, you cannot pass this a double dash but the others will work. And if you’re using cat, good luck to you… I hope you have a big screen.

* Yes, of course, it was me.

Filed under ASM, Blog, Database, Linux Tagged with , , ,

Oracle 12.1.0.2 ASM Filter Driver: Advanced Format Fail

August 11, 2014 8 Comments

wrong-way

[Please note that a more up-to-date post on this subject can be found here]

In my previous post on the subject of the new ASM Filter Driver (AFD) feature introduced in Oracle’s 12.1.0.2 patchset, I installed the AFD to see how it fulfilled its promise that it “filters out all non-Oracle I/Os which could cause accidental overwrites“. However, because I was ten minutes away from my summer vacation at the point of finishing that post, I didn’t actually get round to writing about what happens when you try and create ASM diskgroups on the devices it presents.

Obviously I’ve spent the intervening period constantly worrying about this oversight – indeed, it was only through the judicious application of good food and drink plus some committed relaxation in the sun that I was able to pull through. However, I’m back now and it seems like time to rectify that mistake. So here goes.

Creating ASM Diskgroups with the ASM Filter Driver

It turns out I need not have worried, because it doesn’t work right now… at least, not for me. Here’s why:

First of all, I installed Oracle 12.1.0.2 Grid Infrastructure. I then labelled some block devices presented from my Violin storage array. As I’ve already pasted all the output from those two steps in the previous post, I won’t repeat myself.

The next step is therefore to create a diskgroup. Since I’ve only just come back from holiday and so I’m still half brain-dead, I’ll choose the simple route and fire up the ASM Configuration Assistant (ASMCA) so that I don’t have to look up any of that nasty SQL. Here goes:

afd_create

But guess what happened when I hit the OK button? It failed, bigtime. Here’s the alert log – if you don’t like huge amounts of meaningless text I suggest you skip down… a lot… (although thinking about it, my entire blog could be described as meaningless text):

SQL> CREATE DISKGROUP DATA EXTERNAL REDUNDANCY  DISK 'AFD:DATA1' SIZE 72704M ,
'AFD:DATA2' SIZE 72704M ,
'AFD:DATA3' SIZE 72704M ,
'AFD:DATA4' SIZE 72704M ,
'AFD:DATA5' SIZE 72704M ,
'AFD:DATA6' SIZE 72704M ,
'AFD:DATA7' SIZE 72704M ,
'AFD:DATA8' SIZE 72704M  ATTRIBUTE 'compatible.asm'='12.1.0.0.0','au_size'='1M' /* ASMCA */
Fri Jul 25 16:25:33 2014
WARNING: Library 'AFD Library - Generic , version 3 (KABI_V3)' does not support advanced format disks
Fri Jul 25 16:25:33 2014
NOTE: Assigning number (1,0) to disk (AFD:DATA1)
NOTE: Assigning number (1,1) to disk (AFD:DATA2)
NOTE: Assigning number (1,2) to disk (AFD:DATA3)
NOTE: Assigning number (1,3) to disk (AFD:DATA4)
NOTE: Assigning number (1,4) to disk (AFD:DATA5)
NOTE: Assigning number (1,5) to disk (AFD:DATA6)
NOTE: Assigning number (1,6) to disk (AFD:DATA7)
NOTE: Assigning number (1,7) to disk (AFD:DATA8)
NOTE: initializing header (replicated) on grp 1 disk DATA1
NOTE: initializing header (replicated) on grp 1 disk DATA2
NOTE: initializing header (replicated) on grp 1 disk DATA3
NOTE: initializing header (replicated) on grp 1 disk DATA4
NOTE: initializing header (replicated) on grp 1 disk DATA5
NOTE: initializing header (replicated) on grp 1 disk DATA6
NOTE: initializing header (replicated) on grp 1 disk DATA7
NOTE: initializing header (replicated) on grp 1 disk DATA8
NOTE: initializing header on grp 1 disk DATA1
NOTE: initializing header on grp 1 disk DATA2
NOTE: initializing header on grp 1 disk DATA3
NOTE: initializing header on grp 1 disk DATA4
NOTE: initializing header on grp 1 disk DATA5
NOTE: initializing header on grp 1 disk DATA6
NOTE: initializing header on grp 1 disk DATA7
NOTE: initializing header on grp 1 disk DATA8
NOTE: Disk 0 in group 1 is assigned fgnum=1
NOTE: Disk 1 in group 1 is assigned fgnum=2
NOTE: Disk 2 in group 1 is assigned fgnum=3
NOTE: Disk 3 in group 1 is assigned fgnum=4
NOTE: Disk 4 in group 1 is assigned fgnum=5
NOTE: Disk 5 in group 1 is assigned fgnum=6
NOTE: Disk 6 in group 1 is assigned fgnum=7
NOTE: Disk 7 in group 1 is assigned fgnum=8
NOTE: initiating PST update: grp = 1
Fri Jul 25 16:25:33 2014
GMON updating group 1 at 1 for pid 7, osid 16745
NOTE: group DATA: initial PST location: disk 0000 (PST copy 0)
NOTE: set version 1 for asmCompat 12.1.0.0.0
Fri Jul 25 16:25:33 2014
NOTE: PST update grp = 1 completed successfully
NOTE: cache registered group DATA 1/0xD9B6AE8D
NOTE: cache began mount (first) of group DATA 1/0xD9B6AE8D
NOTE: cache is mounting group DATA created on 2014/07/25 16:25:33
NOTE: cache opening disk 0 of grp 1: DATA1 label:DATA1
NOTE: cache opening disk 1 of grp 1: DATA2 label:DATA2
NOTE: cache opening disk 2 of grp 1: DATA3 label:DATA3
NOTE: cache opening disk 3 of grp 1: DATA4 label:DATA4
NOTE: cache opening disk 4 of grp 1: DATA5 label:DATA5
NOTE: cache opening disk 5 of grp 1: DATA6 label:DATA6
NOTE: cache opening disk 6 of grp 1: DATA7 label:DATA7
NOTE: cache opening disk 7 of grp 1: DATA8 label:DATA8
NOTE: cache creating group 1/0xD9B6AE8D (DATA)
NOTE: cache mounting group 1/0xD9B6AE8D (DATA) succeeded
WARNING: cache read a corrupt block: group=1(DATA) dsk=0 blk=1 disk=0 (DATA1) incarn=3493224069 au=0 blk=1 count=1
Fri Jul 25 16:25:33 2014
Errors in file /u01/app/oracle/diag/asm/+asm/+ASM/trace/+ASM_ora_16745.trc:
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
NOTE: a corrupted block from group DATA was dumped to /u01/app/oracle/diag/asm/+asm/+ASM/trace/+ASM_ora_16745.trc
WARNING: cache read (retry) a corrupt block: group=1(DATA) dsk=0 blk=1 disk=0 (DATA1) incarn=3493224069 au=0 blk=1 count=1
Fri Jul 25 16:25:33 2014
Errors in file /u01/app/oracle/diag/asm/+asm/+ASM/trace/+ASM_ora_16745.trc:
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
WARNING: cache read (retry) a corrupt block: group=1(DATA) dsk=0 blk=1 disk=0 (DATA1) incarn=3493224069 au=11 blk=1 count=1
Fri Jul 25 16:25:33 2014
Errors in file /u01/app/oracle/diag/asm/+asm/+ASM/trace/+ASM_ora_16745.trc:
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
NOTE: a corrupted block from group DATA was dumped to /u01/app/oracle/diag/asm/+asm/+ASM/trace/+ASM_ora_16745.trc
WARNING: cache read (retry) a corrupt block: group=1(DATA) dsk=0 blk=1 disk=0 (DATA1) incarn=3493224069 au=11 blk=1 count=1
Fri Jul 25 16:25:33 2014
Errors in file /u01/app/oracle/diag/asm/+asm/+ASM/trace/+ASM_ora_16745.trc:
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
ERROR: cache failed to read group=1(DATA) dsk=0 blk=1 from disk(s): 0(DATA1) 0(DATA1)
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]

NOTE: cache initiating offline of disk 0 group DATA
NOTE: process _user16745_+asm (16745) initiating offline of disk 0.3493224069 (DATA1) with mask 0x7e in group 1 (DATA) with client assisting
NOTE: initiating PST update: grp 1 (DATA), dsk = 0/0xd0365e85, mask = 0x6a, op = clear
Fri Jul 25 16:25:34 2014
GMON updating disk modes for group 1 at 2 for pid 7, osid 16745
ERROR: disk 0(DATA1) in group 1(DATA) cannot be offlined because the disk group has external redundancy.
Fri Jul 25 16:25:34 2014
ERROR: too many offline disks in PST (grp 1)
Fri Jul 25 16:25:34 2014
ERROR: no read quorum in group: required 1, found 0 disks
ERROR: Could not read PST for grp 1. Force dismounting the disk group.
Fri Jul 25 16:25:34 2014
NOTE: halting all I/Os to diskgroup 1 (DATA)
Fri Jul 25 16:25:34 2014
ERROR: no read quorum in group: required 1, found 0 disks
ASM Health Checker found 1 new failures
Fri Jul 25 16:25:36 2014
ERROR: no read quorum in group: required 1, found 0 disks
Fri Jul 25 16:25:36 2014
ERROR: Could not read PST for grp 1. Force dismounting the disk group.
Fri Jul 25 16:25:36 2014
ERROR: no read quorum in group: required 1, found 0 disks
ERROR: Could not read PST for grp 1. Force dismounting the disk group.
Fri Jul 25 16:25:36 2014
ERROR: no read quorum in group: required 1, found 0 disks
ERROR: Could not read PST for grp 1. Force dismounting the disk group.
Fri Jul 25 16:25:37 2014
NOTE: AMDU dump of disk group DATA initiated at /u01/app/oracle/diag/asm/+asm/+ASM/trace
Errors in file /u01/app/oracle/diag/asm/+asm/+ASM/trace/+ASM_ora_16745.trc  (incident=3257):
ORA-15335: ASM metadata corruption detected in disk group 'DATA'
ORA-15130: diskgroup "DATA" is being dismounted
ORA-15066: offlining disk "DATA1" in group "DATA" may result in a data loss
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]
Incident details in: /u01/app/oracle/diag/asm/+asm/+ASM/incident/incdir_3257/+ASM_ora_16745_i3257.trc
Fri Jul 25 16:25:37 2014
Sweep [inc][3257]: completed
Fri Jul 25 16:25:37 2014
SQL> alter diskgroup DATA check
System State dumped to trace file /u01/app/oracle/diag/asm/+asm/+ASM/incident/incdir_3257/+ASM_ora_16745_i3257.trc
NOTE: erasing header (replicated) on grp 1 disk DATA1
NOTE: erasing header (replicated) on grp 1 disk DATA2
NOTE: erasing header (replicated) on grp 1 disk DATA3
NOTE: erasing header (replicated) on grp 1 disk DATA4
NOTE: erasing header (replicated) on grp 1 disk DATA5
NOTE: erasing header (replicated) on grp 1 disk DATA6
NOTE: erasing header (replicated) on grp 1 disk DATA7
NOTE: erasing header (replicated) on grp 1 disk DATA8
NOTE: erasing header on grp 1 disk DATA1
NOTE: erasing header on grp 1 disk DATA2
NOTE: erasing header on grp 1 disk DATA3
NOTE: erasing header on grp 1 disk DATA4
NOTE: erasing header on grp 1 disk DATA5
NOTE: erasing header on grp 1 disk DATA6
NOTE: erasing header on grp 1 disk DATA7
NOTE: erasing header on grp 1 disk DATA8
Fri Jul 25 16:25:37 2014
NOTE: cache dismounting (clean) group 1/0xD9B6AE8D (DATA)
NOTE: messaging CKPT to quiesce pins Unix process pid: 16745, image: oracle@server3.local (TNS V1-V3)
NOTE: dbwr not being msg'd to dismount
NOTE: LGWR not being messaged to dismount
NOTE: cache dismounted group 1/0xD9B6AE8D (DATA)
NOTE: cache ending mount (fail) of group DATA number=1 incarn=0xd9b6ae8d
NOTE: cache deleting context for group DATA 1/0xd9b6ae8d
Fri Jul 25 16:25:37 2014
GMON dismounting group 1 at 3 for pid 7, osid 16745
Fri Jul 25 16:25:37 2014
NOTE: Disk DATA1 in mode 0x7f marked for de-assignment
NOTE: Disk DATA2 in mode 0x7f marked for de-assignment
NOTE: Disk DATA3 in mode 0x7f marked for de-assignment
NOTE: Disk DATA4 in mode 0x7f marked for de-assignment
NOTE: Disk DATA5 in mode 0x7f marked for de-assignment
NOTE: Disk DATA6 in mode 0x7f marked for de-assignment
NOTE: Disk DATA7 in mode 0x7f marked for de-assignment
NOTE: Disk DATA8 in mode 0x7f marked for de-assignment
ERROR: diskgroup DATA was not created
ORA-15018: diskgroup cannot be created
ORA-15335: ASM metadata corruption detected in disk group 'DATA'
ORA-15130: diskgroup "DATA" is being dismounted
Fri Jul 25 16:25:37 2014
ORA-15032: not all alterations performed
ORA-15066: offlining disk "DATA1" in group "DATA" may result in a data loss
ORA-15001: diskgroup "DATA" does not exist or is not mounted
ORA-15196: invalid ASM block header [kfc.c:29297] [endian_kfbh] [2147483648] [1] [0 != 1]

Now then. First of all, thanks for making it this far – I promise not to do that again in this post. Secondly, in case you really did just hit page down *a lot* you might want to skip back up and look for the bits I’ve conveniently highlighted in red. Specifically, this bit:

WARNING: Library 'AFD Library - Generic , version 3 (KABI_V3)' does not support advanced format disks

Many modern storage platforms use Advanced Format – if you want to know what that means, read here. The idea that AFD doesn’t support advanced format is somewhat alarming – and indeed incorrect, according to interactions I have subsequently had with Oracle’s ASM Product Management people. From what I understand, the problem is tracked as bug 19297177 (currently unpublished) and is caused by AFD incorrectly checking the physical blocksize of the storage device (4k) instead of the logical block size (which was 512 bytes). I currently have a request open with Oracle Support for the patch, so when that arrives I will re-test and add another blog article.

Until then, I guess I might as well take another well-earned vacation?

Filed under Advanced Format, ASM, Blog, Database, Linux, Storage Tagged with , , , , ,

Oracle 12.1.0.2 ASM Filter Driver: First Impressions

July 25, 2014 21 Comments

This is a very quick post, because I’m about to log off and take an extended summer holiday (or vacation as my crazy American friends call it… but then they call football  “soccer” too). Before I go, I wanted to document my initial findings with the new ASM Filter Driver feature introduced in this week’s 12.1.0.2 patchset. [For a more recent post on this topic, read here]

Currently a Linux-only feature, the ASM Filter Driver (or AFD) is a replacement for ASMLib and is described by Oracle as follows:

Oracle ASM Filter Driver (Oracle ASMFD) is a kernel module that resides in the I/O path of the Oracle ASM disks. Oracle ASM uses the filter driver to validate write I/O requests to Oracle ASM disks.

The Oracle ASMFD simplifies the configuration and management of disk devices by eliminating the need to rebind disk devices used with Oracle ASM each time the system is restarted.

The Oracle ASM Filter Driver rejects any I/O requests that are invalid. This action eliminates accidental overwrites of Oracle ASM disks that would cause corruption in the disks and files within the disk group. For example, the Oracle ASM Filter Driver filters out all non-Oracle I/Os which could cause accidental overwrites.

Interesting, eh? So let’s find out how that works.

Installation

I found this a real pain as you need to have 12.1.0.2 installed before the AFD is available to label your disks, yet the default OUI mode wants to create an ASM diskgroup… and you cannot do that without any labelled disks.

The only solution I could come up with was to perform a software-only install, which in itself is a pain. I’ll skip the numerous screenshots of that part though and just skip straight to the bit where I have 12.1.0.2 Grid Infrastructure installed.

I’m following these instructions because I am using a single-instance Oracle Restart system rather than a true cluster.

First of all we need to do this:

[oracle@server3 ~]$ $ORACLE_HOME/bin/asmcmd dsset 'AFD:*'

[oracle@server3 ~]$ $ORACLE_HOME/bin/asmcmd dsget
parameter:AFD:*
profile:AFD:*
[oracle@server3 ~]$ srvctl config asm
ASM home:
Password file:
ASM listener: LISTENER
Spfile: /u01/app/oracle/admin/+ASM/pfile/spfile+ASM.ora
ASM diskgroup discovery string: AFD:*

Then we need to stop HAS and run the AFD_CONFIGURE command:

[root@server3 ~]# $ORACLE_HOME/bin/crsctl stop has -f
CRS-2791: Starting shutdown of Oracle High Availability Services-managed resources on 'server3'
CRS-2673: Attempting to stop 'ora.asm' on 'server3'
CRS-2673: Attempting to stop 'ora.evmd' on 'server3'
CRS-2673: Attempting to stop 'ora.LISTENER.lsnr' on 'server3'
CRS-2677: Stop of 'ora.LISTENER.lsnr' on 'server3' succeeded
CRS-2677: Stop of 'ora.evmd' on 'server3' succeeded
CRS-2677: Stop of 'ora.asm' on 'server3' succeeded
CRS-2673: Attempting to stop 'ora.cssd' on 'server3'
CRS-2677: Stop of 'ora.cssd' on 'server3' succeeded
CRS-2793: Shutdown of Oracle High Availability Services-managed resources on 'server3' has completed
CRS-4133: Oracle High Availability Services has been stopped.

[root@server3 ~]# $ORACLE_HOME/bin/asmcmd afd_configure
Connected to an idle instance.
AFD-627: AFD distribution files found.
AFD-636: Installing requested AFD software.
AFD-637: Loading installed AFD drivers.
AFD-9321: Creating udev for AFD.
AFD-9323: Creating module dependencies - this may take some time.
AFD-9154: Loading 'oracleafd.ko' driver.
AFD-649: Verifying AFD devices.
AFD-9156: Detecting control device '/dev/oracleafd/admin'.
AFD-638: AFD installation correctness verified.
Modifying resource dependencies - this may take some time.
ASMCMD-9524: AFD configuration failed 'ERROR: OHASD start failed'

Er… that’s not really what I had in mind. But hey, let’s carry on regardless:

[root@server3 oracleafd]# $ORACLE_HOME/bin/asmcmd afd_state
Connected to an idle instance.
ASMCMD-9526: The AFD state is 'LOADED' and filtering is 'DEFAULT' on host 'server3.local'

[root@server3 oracleafd]# $ORACLE_HOME/bin/crsctl start has
CRS-4123: Oracle High Availability Services has been started.

Ok it seems to be working. I wonder what it’s done?

Investigation

The first thing I notice is some Oracle kernel modules have been loaded:

[root@server3 ~]# lsmod | grep ora
oracleafd             208499  1
oracleacfs           3307969  0
oracleadvm            506254  0
oracleoks             505749  2 oracleacfs,oracleadvm

I also see that, just like ASMLib, a driver has been plonked into the /opt/oracle/extapi directory:

[root@server3 1]# find /opt/oracle/extapi -ls
2752765    4 drwxr-xr-x   3 root     root         4096 Jul 25 15:15 /opt/oracle/extapi
2752766    4 drwxr-xr-x   3 root     root         4096 Jul 25 15:15 /opt/oracle/extapi/64
2753508    4 drwxr-xr-x   3 root     root         4096 Jul 25 15:15 /opt/oracle/extapi/64/asm
2756532    4 drwxr-xr-x   3 root     root         4096 Jul 25 15:15 /opt/oracle/extapi/64/asm/orcl
2756562    4 drwxr-xr-x   2 root     root         4096 Jul 25 15:15 /opt/oracle/extapi/64/asm/orcl/1
2756578  268 -rwxr-xr-x   1 oracle   dba        272513 Jul 25 15:15 /opt/oracle/extapi/64/asm/orcl/1/libafd12.so

And again, just like ASMLib, there is a new directory under /dev called /dev/oracleafd (whereas for ASMLib it’s called /dev/oracleasm):

[root@server3 ~]# ls -la /dev/oracleafd/
total 0
drwxrwx---  3 oracle dba      80 Jul 25 15:15 .
drwxr-xr-x 21 root   root  15820 Jul 25 15:15 ..
brwxrwx---  1 oracle dba  249, 0 Jul 25 15:15 admin
drwxrwx---  2 oracle dba      40 Jul 25 15:15 disks

The disks directory is currently empty. Maybe I should create some AFD devices and see what happens?

Labelling

So let’s look at my Violin devices and see if I can label them:

root@server3 mapper]# ls -l /dev/mapper
total 0
crw-rw---- 1 root root 10, 236 Jul 11 16:52 control
lrwxrwxrwx 1 root root       7 Jul 25 15:49 data1 -> ../dm-3
lrwxrwxrwx 1 root root       7 Jul 25 15:49 data2 -> ../dm-4
lrwxrwxrwx 1 root root       7 Jul 25 15:49 data3 -> ../dm-5
lrwxrwxrwx 1 root root       7 Jul 25 15:49 data4 -> ../dm-6
lrwxrwxrwx 1 root root       7 Jul 25 15:49 data5 -> ../dm-7
lrwxrwxrwx 1 root root       7 Jul 25 15:49 data6 -> ../dm-8
lrwxrwxrwx 1 root root       7 Jul 25 15:49 data7 -> ../dm-9
lrwxrwxrwx 1 root root       8 Jul 25 15:49 data8 -> ../dm-10
lrwxrwxrwx 1 root root       7 Jul 11 16:53 VolGroup-lv_home -> ../dm-2
lrwxrwxrwx 1 root root       7 Jul 11 16:53 VolGroup-lv_root -> ../dm-0
lrwxrwxrwx 1 root root       7 Jul 11 16:52 VolGroup-lv_swap -> ../dm-1

The documentation appears to be incorrect here, when it says to use the command $ORACLE_HOME/bin/afd_label. It’s actually $ORACLE_HOME/bin/asmcmd with the first parameter afd_label. I’m going to label the devices called /dev/mapper/data*:

[root@server3 mapper]# for lun in 1 2 3 4 5 6 7 8; do
> asmcmd afd_label DATA$lun /dev/mapper/data$lun
> done
Connected to an idle instance.
Connected to an idle instance.
Connected to an idle instance.
Connected to an idle instance.
Connected to an idle instance.
Connected to an idle instance.
Connected to an idle instance.
Connected to an idle instance.

root@server3 mapper]# asmcmd afd_lsdsk
Connected to an idle instance.
--------------------------------------------------------------------------------
Label                     Filtering   Path
================================================================================
DATA1                       ENABLED   /dev/mapper/data1
DATA2                       ENABLED   /dev/mapper/data2
DATA3                       ENABLED   /dev/mapper/data3
DATA4                       ENABLED   /dev/mapper/data4
DATA5                       ENABLED   /dev/mapper/data5
DATA6                       ENABLED   /dev/mapper/data6
DATA7                       ENABLED   /dev/mapper/data7
DATA8                       ENABLED   /dev/mapper/data8

That seemed to work ok. So what’s going on in the /dev/oracleafd/disks directory now?

[root@server3 ~]# ls -l /dev/oracleafd/disks/
total 32
-rw-r--r-- 1 root root 26 Jul 25 15:52 DATA1
-rw-r--r-- 1 root root 26 Jul 25 15:49 DATA2
-rw-r--r-- 1 root root 26 Jul 25 15:49 DATA3
-rw-r--r-- 1 root root 26 Jul 25 15:49 DATA4
-rw-r--r-- 1 root root 26 Jul 25 15:49 DATA5
-rw-r--r-- 1 root root 26 Jul 25 15:49 DATA6
-rw-r--r-- 1 root root 26 Jul 25 15:49 DATA7
-rw-r--r-- 1 root root 26 Jul 25 15:49 DATA8

There they are, just like with ASMLib. But look at the permissions, they are all owned by root with read-only privs for other users. In an ASMLib environment these devices are owned by oracle:dba, which means non-Oracle processes can write to them and corrupt them in some situations. Is this how Oracle claims the AFD protects devices?

I haven’t had time to investigate further but I assume that the database will access the devices via this mysterious block device:

[oracle@server3 oracleafd]$ ls -l /dev/oracleafd/admin
brwxrwx--- 1 oracle dba 249, 0 Jul 25 16:25 /dev/oracleafd/admin

It will be interesting to find out.

Distruction

Of course, if you are logged in as root you aren’t going to be protected from any crazy behaviour:

[root@server3 ~]# cd /dev/oracleafd/disks
[root@server3 disks]# ls -l
total 496
-rw-r--r-- 1 root root 475877 Jul 25 16:40 DATA1
-rw-r--r-- 1 root root     26 Jul 25 15:49 DATA2
-rw-r--r-- 1 root root     26 Jul 25 15:49 DATA3
-rw-r--r-- 1 root root     26 Jul 25 15:49 DATA4
-rw-r--r-- 1 root root     26 Jul 25 15:49 DATA5
-rw-r--r-- 1 root root     26 Jul 25 15:49 DATA6
-rw-r--r-- 1 root root     26 Jul 25 15:49 DATA7
-rw-r--r-- 1 root root     26 Jul 25 15:49 DATA8
[root@server3 disks]# od -c -N 256 DATA8
0000000   /   d   e   v   /   m   a   p   p   e   r   /   d   a   t   a
0000020   8  \n
0000032
[root@server3 disks]# dmesg >> DATA8
[root@server3 disks]# od -c -N 256 DATA8
0000000   /   d   e   v   /   m   a   p   p   e   r   /   d   a   t   a
0000020   8   \n   z   r   d   b   t   e   2  l   I   n   i   t   i   a
0000040   l   i   z   i   n   g       c   g   r   o   u   p       s   u
0000060   b   s   y   s       c   p   u   s   e   t  \n   I   n   i   t
0000100   i   a   l   i   z   i   n   g       c   g   r   o   u   p
0000120   s   u   b   s   y   s       c   p   u  \n   L   i   n   u   x
0000140       v   e   r   s   i   o   n       3   .   8   .   1   3   -
0000160   2   6   .   2   .   3   .   e   l   6   u   e   k   .   x   8
0000200   6   _   6   4       (   m   o   c   k   b   u   i   l   d   @
0000220   c   a   -   b   u   i   l   d   4   4   .   u   s   .   o   r
0000240   a   c   l   e   .   c   o   m   )       (   g   c   c       v
0000260   e   r   s   i   o   n       4   .   4   .   7       2   0   1
0000300   2   0   3   1   3       (   R   e   d       H   a   t       4
0000320   .   4   .   7   -   3   )       (   G   C   C   )       )
0000340   #   2       S   M   P       W   e   d       A   p   r       1
0000360   6       0   2   :   5   1   :   1   0       P   D   T       2
0000400

Proof, if ever you need it, that root access is still the fastest and easiest route to total disaster…

[Update July 2015: Ok, so look. I was wrong in this post – these /dev/oracleafd/disks devices are simply pointers to devices in /dev/dm-* and thus I was only overwriting the pointer. To read a more accurate post on the subject, please read here]

Filed under Advanced Format, ASM, Blog, Database, Linux, Storage Tagged with , , , , ,

← Older posts

Newer posts →
