The Great Hypervisor Bake-off: VMware ESX vs Oracle VM

lock-horns

This is a very simple post to show the results of some recent testing that Tom and I ran using Oracle SLOB on Violin to determine the impact of using virtualization. But before we get to that, I am duty bound to write a paragraph of text featuring lots of long sentences peppered with industry buzz words. Forgive me, it’s just the way I’m wired.

It is increasingly common these days to find database environments running in virtual machines – even large, business critical ones. The driver is the trend to commoditize I.T. services and build consolidated, private-cloud style solutions in order to control operational expense and increase agility (not to mention reduce exposure to Oracle licenses). But, as I’ve said in previous posts, the catalyst has been the unblocking of I/O as legacy disk systems are replaced by flash memory. In the past, virtual environments caused a kind of I/O blender effect whereby I/O calls become increasingly randomized – and this sucked for the performance of disk drives. Flash memory arrays on the other hand can deliver random I/O all day long because… well, if you don’t know the reasons by now can I just recommend starting at the beginning. The outcome is that many large and medium-sized organisations are now building database-as-a-service platforms with Oracle databases (other database products are available) running in virtual machines. It’s happening right now.

Phew. Anyway, that last paragraph was just a wordy way of telling you that I’m often seeing Oracle running in virtual machines on top of hypervisors. But how much of a performance impact do those hypervisors have? Step this way to find out.

The Contenders

boxersWhen it comes to running Oracle on a hypervisor using Intel x86 hardware (for that is what I have available), I only know of three real contenders:

Hyper-V has been an option for a couple of years now, but I’ll be honest – I have neither the time nor the inclination to test it today. It’s not that I don’t rate it as a product, it’s just that I’ve never used it before and don’t have enough time to learn something new right now. Maybe someday I’ll come back and add it to the mix.

In the meantime, it’s the big showdown: VMware versus Oracle VM. Not that Oracle VM is really in the same league as VMware in terms of market share… but you know, I’m trying to make this sound exciting.

The Test

This is going to be an Oracle SLOB sustained throughput test. In other words, I’m going to build an Oracle database and then shovel a massive amount of I/O through it (you can read all about SLOB here and here). SLOB will be configured to run with 25% of statements being UPDATEs (the remainder are SELECTs) and will run for 8 hours straight. What we want to see is a) which hypervisor configuration allows the greatest I/O bandwidth, and b) which hypervisor configuration exhibits the most predictable performance.

This is the configuration. First the hardware:

Violin Memory 6616 flash Memory Array

Violin Memory 6616 flash Memory Array

  • 1x Dell PowerEdge R720 server
  • 2x Intel Xeon CPU E5-2690 v2 10-core @ 3.00GHz [so that’s 2 sockets, 20 cores, 40 threads for this server]
  • 128GB DRAM
  • 1x Violin Memory 6616 (SLC) flash memory array [the one that did this]
  • 8GB fibre-channel

And the software:

  • Hypervisor: VMware ESXi 5.5.1
  • Hypervisor: Oracle VM for x86 3.3.1
  • VM: Oracle Linux 6 Update 5 (with the Unbreakable Enterprise v3 Kernel 3.6.18)
  • Oracle Grid Infrastructure 11.2.0.4 (for Automatic Storage Management)
  • Oracle Database Enterprise Edition 11.2.0.4

Each VM is configured with 20 vCPUs and is using Linux Device Mapper Multipath and Oracle ASMLib. ASM is configured to use one single +DATA disgroup comprising 8 ASM disks (LUNs from Violin) with external redundancy. The database parameters and SLOB settings are all listed on the SLOB sustained throughput test page.

Results: Bare Metal (Baseline)

First let’s see what happens when we don’t use a hypervisor at all and just run OL6.5 on bare metal:

Oracle SLOB- 8 Hour Sustained Throughput Test with no hypervisor (SLC)

IO Profile                  Read+Write/Second     Read/Second    Write/Second
~~~~~~~~~~                  ----------------- --------------- ---------------
            Total Requests:         232,431.0       194,452.3        37,978.7
         Database Requests:         228,909.4       194,447.9        34,461.5
        Optimized Requests:               0.0             0.0             0.0
             Redo Requests:           3,515.1             0.3         3,514.8
                Total (MB):           1,839.6         1,519.2           320.4

Ok so we’re looking at 1519 MB/sec of read throughput and 320 MB/sec of write throughput. Crucially, the lines are nice and consistent – with very little deviation from the mean. By dividing the amount of time spent waiting on db file sequential read (i.e. random physical reads) with the number of waits, we can calculate that the average latency for random reads was 438 microseconds.

Now we know what to expect, let’s look at the result from the hypervisor tests.

Results: VMware vSphere

VMware is configured to use Raw Device Mapping (RDM) which essentially gives the benefits of raw devices… read here for more details on that. Here are the test results:

Oracle SLOB- 8 Hour Sustained Throughput Test with VMware ESXi 5.5.1 (SLC)

IO Profile                  Read+Write/Second     Read/Second    Write/Second
~~~~~~~~~~                  ----------------- --------------- ---------------
            Total Requests:         173,141.7       145,066.8        28,075.0
         Database Requests:         170,615.3       145,064.0        25,551.4
        Optimized Requests:               0.0             0.0             0.0
             Redo Requests:           2,522.8             0.1         2,522.7
                Total (MB):           1,370.0         1,133.4           236.7

Average read throughput for this test was 1133 MB/sec and write throughput averaged at 237 MB/sec. Average read latency was 596 microseconds. That’s an increase of 36%.

In comparison to the bare metal test, we see that total bandwidth dropped by around 25%. That might seem like a lot but remember, we are absolutely hammering this system. A real database is unlikely to ever create this level of sustained I/O. In my role at Violin I’ve been privileged to work on some of the busiest databases in Europe – nothing is ever this crazy (although a few do come close).

Results: Oracle VM

Oracle VM is based on the Xen hypervisor and therefore uses Xen virtual disks to present block devices. For this test I downloaded the Oracle Linux 6 Update 5 template from Oracle’s eDelivery site. You can see more about the way this VM was configured here. Here are the test results:

Oracle SLOB- 8 Hour Sustained Throughput Test with Oracle VM 3.3.1 (SLC)

IO Profile                  Read+Write/Second     Read/Second    Write/Second
~~~~~~~~~~                  ----------------- --------------- ---------------
            Total Requests:         160,563.8       134,592.9        25,970.9
         Database Requests:         158,538.1       134,587.3        23,950.8
        Optimized Requests:               0.0             0.0             0.0
             Redo Requests:           2,017.2             0.2         2,016.9
                Total (MB):           1,273.4         1,051.6           221.9

This time we see average read bandwidth of 1052MB/sec and average write bandwidth of 222MB/sec, with the average read latency at 607 microseconds, which is 39% higher than the baseline test.

Meanwhile, total bandwidth dropped by 31%. That’s slightly worse than VMware, but what’s really interesting is the deviation. Look at how ragged the lines are on the OVM test! There is a much higher degree of variance exhibited here than on the VMware test.

Conclusion

This is only one test so I’m not claiming it’s conclusive. VMware does appear to deliver slightly better performance than OVM in my tests, but it’s not a huge difference. However, I am very much concerned by the variance of the OVM test in comparison to VMware. Look, for example, at the wait event histograms for db file sequential read:

Wait Event Histogram
-> Units for Total Waits column: K is 1000, M is 1000000, G is 1000000000
-> % of Waits: value of .0 indicates value was <.05%; value of null is truly 0
-> % of Waits: column heading of <=1s is truly <1024ms, >1s is truly >=1024ms
-> Ordered by Event (idle events last)

                                                             % of Waits
                                          -----------------------------------------------
                                    Total
Hypervisor  Event                   Waits  <1ms  <2ms  <4ms  <8ms <16ms <32ms  <=1s   >1s
----------- ----------------------- ----- ----- ----- ----- ----- ----- ----- ----- -----
Bare Metal: db file sequential read 5557.  98.7   1.3    .0    .0    .0    .0
VMware ESX: db file sequential read 4164.  92.2   6.7   1.1    .0    .0    .0
Oracle VM : db file sequential read 3834.  95.6   4.1    .1    .1    .0    .0    .0    .0

The OVM tests show occasional results in the two highest buckets, meaning once or twice there were waits in excess of 1 second! However, to be fair, OVM also had more millisecond waits than VMware.

Anyway, for now – and for this setup at least – I’m sticking with VMware. You should of course test your own workloads before choosing which hypervisor works for you…

Thanks as always to Kevin for bringing Oracle SLOB to the community.

Predictions for 2014: DataBase-as-a-Service

fireworks

It’s that time of year again where lots of people write articles which begin with the words “It’s that time of year again…” and make endless references to crystal balls, tea leaves and the benefits of hindsight. But not me, I’m not descending into cliché. Apart from that first sentence, which with the benefit of hindsight could have been reworded.

Anyway, as 2013 draws to a close it’s time to look forward into 2014 and make some suitably vague predictions about cloud computing, big data 2.0 and the internet of things. But the thing is, my focus is on enterprise applications that use enterprise database software such as Oracle or Microsoft SQL Server. The people I meet in my day job – and to some extent the people that are kind enough to read my blog – tend to work in this field too. Cloud computing will definitely affect us all in the long term, but I’m not sure it will drastically change our lives in 2014. Likewise, the only way I see the internet of things affecting us next year is the possibility of more data in our data warehouses… and if I made the prediction that your data warehouses would get bigger, you would be pretty unimpressed.

What about the raft of technologies that come under the heading big data? (By the way, I only said “big data 2.0” to tease Gwen Shapira) Will we see SQL-on-Hadoop threatening the Oracle ecosystem? Maybe even being adopted for OLTP workloads? Maybe some day, but it won’t be mainstream in 2014. And that kinda makes all of the usual predictions a bit … well, irrelevant to us.

So with that in mind, it’s time to gaze into the crystal ball, read the tea leaves and abandon any cliché-avoidance claims I made in the first paragraph.

A Lesson From Intel

There is a theory that Intel is suffering from the rise of the what is called the mobile/cloud era. Instead of users sat behind desktop computers accessing application servers (and the database servers behind them) it’s now very common to find users with smart devices (i.e. phones and tablets) accessing applications which run in (public) cloud data centres. This shouldn’t be a surprise to anyone who has noticed the savage decline in PC sales. But what does it mean for Intel?

CPUIn general it’s bad news. Firstly and most obviously it’s bad because Intel has the desktop PC market sown up but is struggling against ARM in the mobile device market (so much so that it now even makes ARM processors in its own fabs). But the second reason is more interesting: cloud computing is allowing data centres to run Intel enterprise-class processors at higher utilisations. The nature of cloud computing, i.e. shared and consolidated resources running flexible, virtualised workloads, means better value for money can be extracted from compute resources. Cloud computing means better efficiency, which is good for customers but bad for Intel.

Why am I talking about this? Because this is a problem based around the cost of CPUs. And as you may remember, the CPUs in your database server are the most expensive CPUs you own because they are tied to your database software licenses.

Moore’s Law: Diminishing Returns

Moores-LawWe all know that Moore’s Law is bringing us more transistors on a circuit every couple of years, meaning increasing amounts of compute power in your servers. But there is a catch: average CPU utilisation in most private data centres remains the same, with industry reports claiming the average is between 4% and 15% (and I personally know of a global financial organisation with an average of 4% so these are realistic estimates). Considering the cost of server resources (including power, cooling, real estate, people to maintain them) that makes for uncomfortable reading; but if you add on top the price of database software licenses (licensed by the core) it becomes prohibitively expensive. The knock-on effect of Moore’s Law is that as compute resource increases, so does the money you are wasting. But the good news is, it’s also a massive potential for saving money: just like Intel’s mobile/cloud problem above, driving more compute from your CPUs means more efficiency for you and less money for Oracle.

DataBase-as-a-Service

The way to increase CPU utilisation is to virtualise and consolidate databases: regular readers will know that I’ve been banging on about this for ages. As part of my day job, I’ve been travelling around Europe for the last 18 months talking about DBaaS (but under various other names such as Database Virtualisation or Private Cloud) to customers big and small – and I know a number of large enterprises who are actively planning or building such solutions, so it came as no surprise to me when 451 Research issued this report in August 2013. This is my prediction for 2014: the adoption of database-as-a-service solutions will enter the mainstream. The benefits are too hard to ignore: increased agility, reduced operational costs and better utilisation of compute resources (meaning lower total cost of ownership). It also acts as an on-ramp to running your databases in the (public) cloud at some point in the future.

At one end there will be hyperscale customers such as the telcos and financial organisations that I have already seen embark on this journey. But at the other end, even smaller customers can benefit from a simple VMware, Hyper-V or OVM-based solution to drive up CPU utilisation. And it’s not just me who thinks this either. Just don’t forget to build your solution on flash.

Oracle Wants Its Piece Of The Action

Of course, this could be bad news for Oracle, since customers who use their compute resources more efficiently will require less Oracle licenses, along with less support and maintenance contracts. What does Oracle do to avoid this situation? Well… if you can’t beat them, join them:

oracle-database-as-a-service-press-release

Yes, Oracle wants (more of) your money and it’s prepared to use its mighty marketing machine to get it. This means:

Personally I see DBaaS as an opportunity to embrace open systems and build flexible architectures. But, unsurprisingly, Oracle’s viewpoint is that you can build your DBaaS to use any solution as long as it’s red.

Conclusion

So there you have it. In a stunning leap into the unknown I’ve predicted that DBaaS will be widely adopted (even though this has already started happening), that your data warehouses will grow larger and that Oracle wants more of your money. And with that hat-trick in the bag, I’m taking the rest of the year off. See you in 2014…

Engineered Systems – An Alternative View

engineered-systemHave you seen the press recently? Or passed through an airport and seen the massive billboards advertising IT companies? I have – and I’ve learnt something from them: Engineered Systems are the best thing ever. I also know this because I read it on the Oracle website… and on the IBM website, although IBM likes to call them different names like “Workload Optimized Systems”. HP has its Converged Infrastructure, which is what Engineered Systems look like if you don’t make software. And even Microsoft, that notoriously hardware-free zone where software exists in a utopia unconstrained by nuts and bolts, has a SQL Server Appliance solution which it built with HP.

[I’m going to argue about this for a while, because that’s what I do. There is a summary section further down if you are pressed for time]

So clearly Engineered Systems are the future. Why? Well let’s have a look at the benefits:

Pre-Integration

It doesn’t make sense to buy all of the components of a solution and then integrate them yourself, stumbling across all sorts of issues and compatibility problems, when you can buy the complete solution from a single vendor. Integrating the solution yourself is the best of breed approach, something which seems to have fallout out of favour with marketing people in the IT industry. The Engineered Systems solution is pre-integrated, i.e. it’s already been assembled, tested and validated. It works. Other customers are using it. There is safety in the herd.

Optimization

In Oracle Marketing’s parlance, “Hardware and software, engineered to work together“. If the same vendor makes everything in the stack then there are more opportunities to optimize the design, the code, the integration… assumptions no longer need to be made, so the best possible performance can be squeezed out of the complete package.

terms-and-conditions-applyFaster Deployment

Well… it’s already been built, right? See the Pre-Integration section above and think about all that time saved: you just need to wheel it in, connect up the power and turn it on. Simples.

Of course this isn’t completely the case if you also have to change the way your entire support organisation works in order to support the incoming technology, perhaps by retraining whole groups of operations staff and creating an entirely new specialised role to manage your new purchase. In fact, you could argue that the initial adoption of a technology like Exadata is so disruptive that it is much more complicated and resource-draining than building those best of breed solutions your teams have been integrating for decades. But once you’ve retrained all your staff, changed all your procedures, amended your security guidelines (so the DataBase Machine Administrator has access to all areas) and fended off the poachers (DBMAs get paid more than DBAs) you are undoubtedly in the perfect position to start benefiting from that faster deployment. Well done you.

And then there’s the migration from your existing platform, where (to continue with Exadata as an example) you have to upgrade your database to 11.2, migrate to Linux, convert to ASM, potentially change the endianness of your data and perhaps strip out some application hints in order to take advantage of features like Smart Scan. That work will probably take many times longer than the time saved by the pre-integration…

Single-Vendor Benefits

The great thing about having one vendor is that it simplifies the procurement process and makes support easier too – the infamous “One Throat To Choke” cliché.

Marketing Overdrive

If you believe the hype, the engineered system is the future of I.T. and anyone foolish enough to ignore this “new” concept is going to be left behind. So many of the vendors are pushing hard on that message, but of course there is one particular company with an ultra-aggressive marketing department who stands out above the rest: the one that bet the farm on the idea. Let’s have a look at an example of their marketing material:

Video hosted by YouTube under Standard Terms of Service. Content owner: Oracle Corporation

Now this is all very well, but I have an issue with Engineered Systems in general and this video in particular. Oracle says that if you want a car you do not go and buy all the different parts from multiple, disparate vendors and then set about putting them together yourself. Leaving aside the fact that some brave / crazy people do just that, let’s take a second to consider this. It’s certainly true that most people do not buy their cars in part form and then integrate them, but there is an important difference between cars and the components of Oracle’s Engineered Systems range: variety.

If we pick a typical motor vehicle manufacturer such as Ford or BMW, how many ranges of vehicle do they sell? Compact, family, sports, SUV, luxury, van, truck… then in each range there are many models, each model comes in many variants with a huge list of options that can be added or taken away. Why is there such a massive variety in the car industry? Because choice and flexibility are key – people have different requirements and will choose the product most suitable to their needs.

Looking at Oracle’s engineered systems range, there are six appliances – of which three are designed to run databases: the Exadata Database Machine, the SuperCluster and the ODA. So let’s consider Exadata: it comes in two variants, the X3-2 and the X3-8. The storage for both is identical: a full rack contains 14x Exadata storage servers each with a standard configuration of CPUs, memory, flash cards and hard disk drives. You can choose between high performance or high capacity disk drives but everything else is static (and the choice of disk type affects the whole rack, not just the individual server). What else can you change? Not a lot really – you can upgrade the DRAM in the database servers and choose between Linux or Solaris, but other than that the only option is the size of the rack.

The Exadata X3-2 comes in four possible rack sizes: eighth, quarter, half and full; the X3-8 comes only as a full rack. These rack sizes take into account both the database servers and the storage servers, meaning the balance of storage to compute power is fixed. This is a critical point to understand, because this ratio of compute to storage will vary for each different real-world database. Not only that, but it will vary through time as data volumes grow and usage patterns change. In fact, it might even vary through temporal changes such as holiday periods, weekends or simply just the end of the day when users log off and batch jobs kick in.

storage-or-computeFlexibility

And there’s the problem with the appliance-based solution. By definition it cannot be as flexible as the bespoke alternative. Sure I don’t want to construct my own car, but I don’t need to because there are so many options and varieties on the market. If the only pre-integrated cars available were the compact, the van and the truck I might be more tempted to test out my car-building skills. To continue using Exadata as the example, it is possible to increase storage capacity independent of the database node compute capacity by purchasing a storage expansion rack, but this is not simply storage; it’s another set of servers each containing two CPU sockets, DRAM, flash cards, an operating system and software, hard disks… and of course a requirement to purchase more Exadata licenses. You cannot properly describe this as flexibility if, as you increase the capacity of one resource, you lose control of many other resources. In the car example, what if every time I wanted to add some horsepower to the engine I was also forced to add another row of seats? It would be ridiculous.

Summary: Two Sides To Every Coin

Engineered Systems are a design choice. Like all choices they have pros and cons. There are alternatives – and those alternatives also have pros and cons. For me, the Engineered System is one end of a sliding scale where hardware and software are tightly integrated. This brings benefits in terms of deployment time and performance optimization, but at the expense of flexibility and with potential vendor-lockin. The opposite end of that same scale is the Software Defined Data Centre (SDDC), where hardware and software are completely independent: hardware is nothing more than a flexible resource which can be added or removed, controlled and managed, aggregated and pooled… The properties and characteristics of the hardware matter, but the vendor does not. In this concept, data centres will simply contain elastic resources such as compute, storage and networking – which is really just an extension of the cloud paradigm that everyone has been banging on about for some time now.

engineered-systems-or-software-defined-data-centreIt’s going to be interesting to see how the engineered system concept evolves: whether it will adapt to embrace ideas such as the SDDC or whether your large, monolithic engineered system will simply become another tombstone in the corner of your data centre. It’s hard to say, but whatever you do I recommend a healthy dose of scepticism when you read the marketing brochure…

Database Workload Theory

equations

In the scientific world, theoretical physicists postulate theories and ideas, for example the Higgs Boson. After this, experimental physicists design and implement experiments, such as the Large Hadron Collider, to prove or disprove these theories. In this post I’m going to try and do the same thing with databases, except on a smaller budget, with less glamour and zero chance of winning a Nobel prize. On the plus side though, my power bills will be a lot lower.

That last paragraph was really just a grandiose way of saying that I have an idea, but haven’t yet thought of a way to prove it. I’m open to suggestions, feedback and data which prove or disprove it… but for now let’s just look at the theory.

Visualising Database Server I/O Workload

If you look at a database server running a real life workload, you will generally see a pattern in the behaviour of the I/O. If you plot a graph of the two extremes of purely sequential I/O and purely random I/O most workloads will fit somewhere along this sliding scale :

IO-scale

Now of course workloads change all the time, so this is an approximation or average, but it makes sense. After all, we do this in the world of storage, because if the workload is highly random the storage requirements will be very different to if the workload is highly sequential.

What I am going to do now is plot a graph with this as the horizontal axis. The vertical axis will be an exponential representation of the storage footprint used by the database server, i.e. the amount of space used. I can then plot different database server workloads on the graph to see where they fall.

But first, two clarifications. I am at pains to say “database server” instead of “database” because in many environments there are multiple database instances generating I/O on the same server. What we are interested in here is how the storage system is being driven, not how each individual database is behaving. Remember this point and I’ll come back to it soon. The other clarification is regarding workload – because many systems have different windows where I/O patterns change. The classic (and very common) example is the OLTP database where users log off at the end of the day and then batch jobs are run. Let’s plot the OLTP and batch workloads as separate points on our graph.

Here’s what I expect to see:

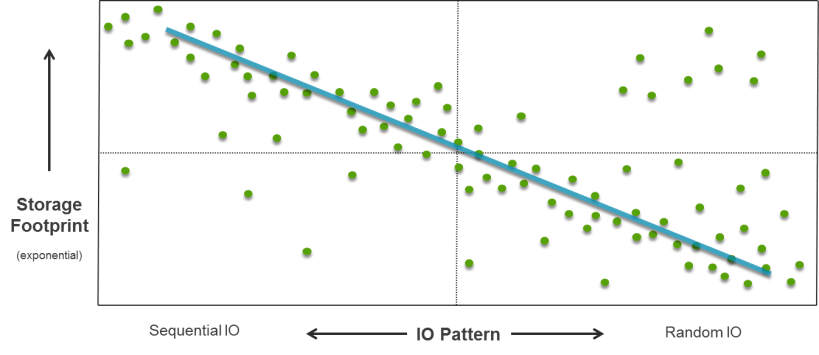

database-io-workload

There are data points in various places but a correlation is visible which I’ve highlighted with the blue line. Unfortunately this line is nothing new or exciting, it’s just a graphical representation of the fact that large databases tend to perform lots of sequential I/O whereas small databases tend to perform lots of random I/O.

Why is that? Well because in most cases large databases tend to be data warehouses, decision support systems, business intelligence or analytics systems… places where data is bulk loaded through ETL jobs and then scanned to create summary information or spot trends and patterns. Full table scans are the order of the day, hence sequential I/O. On the other hand, smaller databases with lots of random I/O tend to be OLTP-based, highly transactional systems running CRM, ERM or e-Commerce platforms, for example.

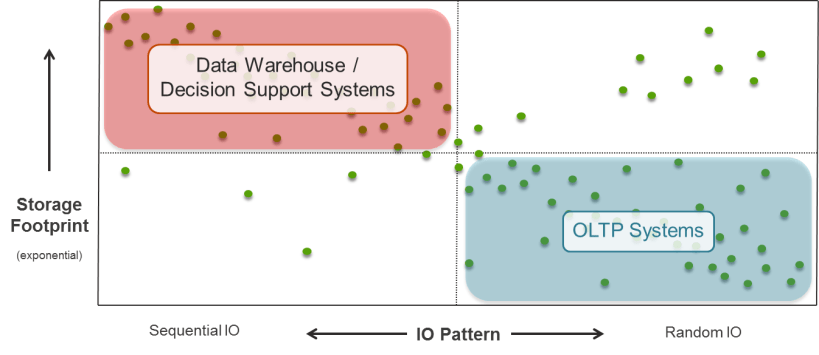

Still, it’s a start – and we can visualise this by dividing the graph up into quadrants and calling them zones, like this:

database-io-workload-zonesThis is only an approximation, but it does help with visualising the type of I/O workload generated by database servers. However, there are two more quadrants looking conspicuously un-labelled, so let’s now turn our attention to them.

Database Consolidation I/O Workload

The bottom left quadrant is not very exciting, because small database systems which generate highly-sequential workloads are rare. I have worked on one or two, but none that I ever felt should actually have been designed to work that way. (One was an indexing system which got scrapped and replaced with Lucene, the other I am still not sure actually existed or if it was just a bad dream that I once had…)

The top right quadrant is much more interesting, because this is the world of database consolidation. I said I would come back to the idea that we are interested not in the workload of the database but of the database server.  The reason for this is that as more databases are run on the same server and storage infrastructure, the I/O will usually become increasingly random. If you think about multiple sets of disparate users working on completely different applications and databases, you realise that it quickly becomes impossible to predict any pattern in the behaviour of the I/O. We already know this from the world of VDI, where increasing the number of seats results in an increasingly random I/O requirement.

The top right quadrant requires lots of random I/O and yet is large in capacity. Let’s label it the consolidation zone on our graph:

database-io-workload-consolidation-zone

We now have a graphical representation of three broad areas of I/O workload. If we believe in the trend of database consolidation, as described by the likes of Gartner and IDC, then over time the dots in the DW and OLTP zones will migrate to the consolidation zone. I have already blogged my thoughts on the benefits of database consolidation, bringing with it increased agility and massive savings in operational costs (especially Oracle licenses) – and many of the customers I have been speaking to both at Violin and in my previous role are already on this journey, even if some are still in the planning stages. I therefore expect to see this quadrant become increasingly populated with workloads, particularly as flash storage technologies take away the barriers to entry.

I/O Workload Zone Requirements

The final step in this process is to look at the generic requirements of each of our three workload zones.

database-io-workload-requirements

The data warehouse zone is relatively straightforward, because what these systems need more than anything is bandwidth. Also known as throughput, this is the ability of the storage to pump large volumes of data in and out. There is competition here, because whilst flash memory systems can offer excellent throughput, so can disk systems. So can Exadata of course, it’s what it was designed for. Mind you, flash should enable a lower operational cost, but this isn’t a sales pitch so let’s move on to the next zone.

The OLTP zone is all about latency. To run a highly-transactional system and get good performance and end-user experience, you need consistently low latency. This is where flash memory excels – and disk sucks. We all (hopefully) know why – disk simply cannot overcome the seek time and rotational latency inherent in its design.

The consolidation zone however is particularly interesting, because it has a subtly different set of requirements. For consolidation you need two things: the ability to offer sustained high levels of IOPS, plus predictable latency. Obviously when I say that I mean predictably low, because predictably high latency isn’t going to cut it (after all, that’s what disk systems deliver). If you are running multiple, disparate applications and databases on the same infrastructure (as is the case with consolidation) it is crucial that each does not affect the performance of the other. One system cannot be allowed to impact the others if it misbehaves.

Now obviously disk isn’t in with a hope here – highly random I/O driving massive and sustained levels of IOPS is the worst nightmare for a disk system. For flash it’s a different story – but it’s not plain sailing. Not every flash vendor can truly sustain their performance levels or keep their latency spike-free. Additionally, not every flash vendor has the full set of enterprise features which allow their products to become a complete tier of storage in a consolidation environment.

As database consolidation increases – and in fact accelerates with the continued onset of virtualisation – these are going to be the requirements which truly differentiate the winners from the contenders in the flash market.

It’s going to be fun…

Disclaimer

What Do You Think?These are my thoughts and ideas – I’m not claiming them as facts. The data here is not real – it is my attempt at visualising my opinions based on experience and interaction with customers. I’m quite happy to argue my points and concede them in the face of contrary evidence. Of course I’d prefer to substantiate them with proof, but until I (or someone else) can devise a way of doing that, this is all I have. Feel free to add your voice one way or the other… and yes, I am aware that I suck at graphics.

Database Virtualisation: The End of Oracle RAC?

A long time ago (2003) in a galaxy far, far away (Denmark), a man wrote a white paper. However, this wasn’t an ordinary man – it was Mogens Nørgaard, OakTable founder, CEO of Miracle A/S and previously the head of RDBMS Support and then Premium Services at Oracle Support in Denmark. It’s fair to say that Mogens is one of the legends of the Oracle community and the truth is that if you haven’t heard of him you might have stumbled upon this blog by accident. Good luck.

The white paper was (somewhat provocatively) entitled, “You Probably Don’t Need RAC” and you can still find a copy of it here courtesy of my friends at iD Concept. If you haven’t read it, or you have but it was a long time ago, please read it again. It’s incredibly relevant – in fact I’m going to argue that it’s more relevant now than ever before. But before I do, I’m going to reprint the conclusions in their entirety:

  • If you have a system that needs to be up and running a few seconds after a crash, you probably need RAC.
  • If you cannot buy a big enough system to deliver the CPU power and or memory you crave, you probably need RAC.
  • If you need to cover your behind politically in your organisation, you can choose to buy clusters, Oracle, RAC and what have you, and then you can safely say: “We’ve bought the most expensive equipment known to man. It cannot possibly be our fault if something goes wrong or the system goes down”.
  • Otherwise, you probably don’t need RAC. Alternatives will usually be cheaper, easier to manage and quite sufficient.

Oracle RAC: What Is The Point?

To find out what the Real Application Clusters product is for, let’s have a look at the Oracle Database 2 Day + Real Application Clusters Guide and see what it says:

Oracle Real Application Clusters (Oracle RAC) enables an Oracle database to run across a cluster of servers, providing fault tolerance, performance, and scalability with no application changes necessary. Oracle RAC provides high availability for applications by removing the single point of failure with a single server.

So from this we see that RAC is a technology designed to provide two major benefits: high availability and scalability. The HA features are derived from being able to run on multiple physical machines, therefore providing the ability to tolerate the failure of a complete server. The scalability features are based around the concept of horizontal scaling, adding (relatively) cheap commodity servers to a pool rather than having to buy an (allegedly) more expensive single server. We also see that there are “no application changes necessary”. I have serious doubts about that last statement, as it appears to contradict evidence from countless independent Oracle experts.

That’s the technology – but one thing that cannot ever be excluded from the conversation is price. Technical people (I’m including myself here) tend to get sidetracked by technical details (I’m including myself there too), but every technology has to justify its price or it is of no economic use. At the time of writing, the Oracle Enterprise Edition license is showing up in the Oracle Shop as US$47,500 per processor. The cost of a RAC license is showing as US$23,000 per processor. That’s a lot of money, both in real terms and also as a percentage of the main Enterprise Edition license – almost 50% as much again. To justify that price tag, RAC needs to deliver something which is a) essential, and b) cannot be obtained through any other less-expensive means.

High Availability

The theory behind RAC is that it provides higher availability by protecting against the failure of a server. Since the servers are nodes in a cluster, the cluster remains up as long as the number of failed nodes is less than the total number of nodes in that cluster.

It’s a great theory. However, there is a downside – and that downside is complexity. RAC systems are much more complex than single-instance systems, a fact which is obvious but still worth mentioning. In my previous role as a database product expert for Oracle Corporation I got to visit multiple Oracle customers and see a large number of Oracle installations, many of which were RAC. The RAC systems were always the most complicated to manage, to patch, to upgrade and to migrate. At no time do I ever remember visiting a customer who had implemented the various Transparent Application Failover (TAF) policies and Fast Application Notification (FAN) mechanisms necessary to provide continuous service to users of a RAC system where a node fails. The simple fact is that most users have to restart their middle tier processes when a node fails and as a result all of the users of that node are kicked off. However, because the cluster remained available they are able to call this a “partial outage” instead of taking the SLA hit of a “complete outage”.

This is just semantics. If your users experience a situation where their work is lost and they have to log back in to start again, that’s an outage. That’s the very antithesis of high availability to me. If the added complexity of RAC means that these service interruptions happen more frequently, then I question whether RAC is really the best solution for high availability. I’m not suggesting that there is anything wrong with the Oracle product (take note Oracle lawyers), simply that if you are not designing and implementing your applications and infrastructure to use TAF and FAN then I do not see how your availability really benefits.

Complexity is the enemy of high availability – and RAC, no matter how you look at it, adds complexity over a single-instance implementation of Oracle.

Scalability

The claim here is that RAC allows for platforms to scale horizontally, by adding nodes to a cluster as additional resources are required. According to the documentation quote above this is possible “with no application changes”. I assume this only applies to the case where nodes are added to an existing multi-node cluster, because going from single-instance to RAC very definitely requires application changes – or at least careful consideration of application code. People far more eloquent (and concise) than I have documented this before, but consider anything in the application schema which is a serialization point: sequences, inserts into tables using a sequential number as the primary key, that sort of thing. You cannot expect an application to perform if you just throw it at RAC.

To understand the scalability point of RAC, it’s important to take a step back and see what RAC actually does conceptually. The answer is all about abstraction. RAC takes the one-to-one database-to-instance relationship and changes it to a one-to-many, so that multiple instances serve one database. This allows for the newly-abstracted instance layer to be expanded (or contracted) without affecting the database layer.

This is exactly the same idea as virtualisation of course. In virtualisation you take the one-to-one physical-server-to-operating-system relationship and abstract it so that you can have many virtual OS’s to each physical server. In fact in most virtualisation products you can take this even further and have many physical servers supporting those virtual machines, but the point is the same – by adding that extra layer of abstraction the resources which used to be tied together now become dynamic.

This is where the concept of RAC fails for me. Firstly, modern servers are extremely powerful – and comparatively cheap. You don’t need to buy a mainframe-style supercomputer in order to run a business-critical application, not when 80 core x86 servers are available and chip performance is rocketing at the speed of Moore’s Law.

Database Virtualisation Is The Answer

Virtualisation technology, whether from VMware, Microsoft or one of the other players in that market, allows for a much better expansion model than RAC in my opinion. The reason for this is summed up perfectly by Dr. Bert Scalzo (NoCOUG journal page 23) when he says, “Hardware is simply a dynamic resource“. By abstracting hardware through a virtualisation layer, the number and type of physical servers can now be changed without having to change the applications running on top in virtual machines.

Equally, by using virtualisation, higher service levels can be achieved due to the reduced complexity of the database (no RAC) and the ability to move virtual machines across physical domains with limited or no interruption. VMware’s vMotion feature, for example, allows for the online migration of Oracle databases with minimal impact to applications. Flash technologies such as the flash memory arrays from Violin Memory allow for the I/O issues around virtualisation to be mitigated or removed entirely. Software exists for managing and monitoring virtualised Oracle environments, whilst leading players in the technology space tell the world about their successes in adopting this model.

What’s more, virtualisation allows for incredible benefits in terms of agility. New Oracle environments can be built simply by cloning existing ones, multiple copies and clones can be taken for use in dev / test / UAT environments with minimal administrative overhead. Self-service options can be automated to give the users ability to get what they want, when they want it. The term “private cloud” stops being marketing hype and starts being an achievable goal.

And finally there’s the cost. VMware licenses are not cheap either, but hardware savings start to become apparent when virtualising. With RAC, you would probably avoid consolidating multiple applications onto the same nodes – an ill-timed node eviction would take out all of your systems and leave you with a real headache. With the added protection of the VM layer that risk is mitigated, so databases can be consolidated and physical hardware shared. Think about what that does to your hardware costs, operational expenditure and database licensing costs.

Conclusion

Ok so the title of this post was deliberately straying into the realms of sensationalism. I know that RAC is not dead – people will be running RAC systems for years to come. But for new implementations, particularly for private-cloud, IT-as-a-service style consolidation environments, is it really a justifiable cost? What does it actually deliver that cannot be achieved using other products – products that actually provide additional benefits too?

Personally, I have my doubts – I think it’s in danger of becoming a technology without a use case. And considering the cost and complexity it brings…

Exadata Roadmap Preview

Last week, Andrew Mendelsohn gave a talk at the Enkitec Extreme Exadata Expo (“E4”) run in Texas by those excellent guys at Enkitec. Andrew is the SVP of Oracle’s Database Server Technologies group, so it’s fair to say he has his finger on the pulse of the Oracle roadmap for Exadata.

Big thanks to Frits Hoogland for tweeting a picture of the roadmap slide. As you can see there are some interesting things on there… I’m told that Andrew described these features as “coming within the next 12 months”. Of course, that could mean they arrive at the next Oracle Open World in a month’s time, or they could be 365 days away. I suspect some are coming sooner than others, but as usual it is all wild speculation. Never mind though, if there’s one thing I’m quite good at it’s wild(ly inaccurate)  speculation.

The first one to consider is the in-memory optimized compression. Why is this important? Well, for Exadata, one reason is that no compression functionality can be offloaded to the storage cells, with their 168 cores (in a full rack). Instead it has to take place on the far-less processor-heavy compute nodes (only 96 cores on a full rack X2-2). Of course, it may be that the cells are busy and the compute nodes are idle, in which case this is a happy coincidence and there would be plenty of resource available for compression (although actually if the cells are really busy they may be performing “passthrough“, where work is offloaded back to the compute nodes!). But the fact remains that since the Exadata design is asymmetrical, you are still limited to only using the CPUs in the compute nodes. If you want to know what that means, you really need to be watching these videos by Kevin Closson. It seems like everyone wants to do everything in memory these days, but then I guess that’s not surprising when the alternative is doing it on disk.

The second important feature is the “flash for all writes” write-back flash cache, enabling the database writer to use some of the 5.3TB of flash available in a full rack. Of course, this is effectively a cache, albeit a persistent one. The writes still have to be de-staged back to disk at some point. Andrew is claiming a 10x improvement here on the slide, but it will be interesting to see how that plays out – particularly if those writes are sustained and the area allocated on the flash cards starts to run out. Kevin posted some views about this on his site, although being Kevin he likes to stick to the facts rather than throw about the armfuls of wildly inaccurate speculation that you’ll find here.

Finally, the feature that caught my eye the most was “Virtualization of database servers”. Regular readers will know my absolute faith in the meeting of databases with virtualization technology, so for me this appears to be yet another clear sign (if you look for them hard enough you can always find them 🙂 ). I wonder if this means the introduction of Oracle VM onto the compute nodes. The x86 hardware is there, the Infiniband network is there, so this could pave the way for OVM on Exadata with all of the resultant Live Migration technology… it’s a thought.

Let’s face it, Oracle is getting spanked in the virtualisation arena by VMware, so they need to do something big to get people to notice OVM. With the release of EMC’s vFabric Data Director 2.0 it’s now time to fight or give up. And we all know Oracle likes a fight.

For my money OVM is actually a great product, but then so is VMware. And for all Larry’s words on virtualization being the best security model, it’s a technology that has been noticeably lacking on what is, after all, Oracle’s strategic platform for all database workloads

Comments welcome… and feel free to call me out on what is clearly an obvious lack of insider knowledge.

Database Virtualization Part 2 – Flash Makes The Difference

In part one of this article I talked about Database Virtualisation and how I believe that it is the next trend in our industry. Databases – particularly Oracle databases – have held out against the rise of virtualisation for a long time, but as virtualisation products have matured and the drive to consumerise and consolidate IT services has increased, the idea of running production databases inside virtual machines has started to make real business sense. And to complete the perfect storm of conditions that make this not just a viable solution but a seriously attractive one, flash memory now enters the picture.

Why has it taken so long for virtualisation to be adopted with production databases? Oracle’s support policy is a factor, of course, along with their license policy (discussed later). But the primary reason I’ll wager is risk. And the risk is all around performance – how can you be sure that the addition of a hypervisor will not affect system performance? In particular, how can you ensure that performance remains predictable. It’s primarily a latency thing, you do not want to be adding extra code paths to the application calls where speed is of the essence. You cannot afford to be adding nanoseconds to your CPU calls and milliseconds to your I/O operations, because it’s all wait time – and it all adds up.

This is compounded because one of the most obvious goals in virtualisation is to run multiple different virtual databases on top of the same physical infrastructure. In the virtualisation world (whether looking at databases or not), each virtualised guest has its own workload pattern which includes the pattern of I/O it performs. However, as you overlay each different guest onto the same physical host, something interesting happens: the I/O pattern tends towards randomness.

Latency Matters

Latency is measured in units of time: nanoseconds for CPU cycles, microseconds for flash memory arrays, milliseconds for disk arrays, seconds for networks, but always units of time. And it’s lost time, it’s time spent waiting instead of doing the thing we want to do. We care about latency because the operations for which latency is measured (e.g. reads and writes) happen frequently, perhaps thousands of times per second. Although those units of time may appear quite small, when you multiply them by their frequency you discover that they turn out to be significant portions of the total available time. And time is what we care about most, it’s the reason we upgrade computer equipment to faster models, why we drive too fast or complain bitterly about the UK’s slow progress in adopting LTE (or is that just me?)

Disk arrays have horrible latency figures. If a CPU cycle takes only a nanosecond and accessing DRAM takes 100ns, waiting 10ms (so that’s 10,000,000ns) for a single block to be read from disk is like waiting a lifetime. Disk manufacturers can do little about this because somewhere a little metal arm has to move over a little spinning disk (seek time) and wait for it to rotate to the right place (rotational latency) before you can have your data. They have done their best to make that disk move as fast as possible (which is why it uses so much power and creates so much heat), but there are laws of physics which cannot be broken. Of course, one thing that disk does have in its favour is that once the disk head is in the correct place to read or write that data to or from the platter, it can access the following block really quickly. This is sequential I/O and it’s something that disks do much better than random I/O, for the obvious reason that every subsequent block read in a sequential I/O avoids the seek time and rotational latency thereby reducing the total average read or write time.

But hang on, what did we say before about virtualisation? The more virtual databases you fit onto the physical infrastructure (i.e. the density), the more random the I/O becomes. So as you increase the density, you get increasingly bad performance. Yet increasing the density is exactly what you want to do in order to achieve the cost savings associated with virtualising your databases… it’s one of the primary drivers of the whole exercise. Doesn’t that mean that disks are completely the wrong technology for virtualisation?

Luckily we have our new friend flash technology to help us, with its ultra-low latency. Flash doesn’t care whether I/O is random or sequential because it does not have any seek time or rotational latency – why would it, there are no moving parts. A Violin Memory flash array can read a 4k block in under 100 microseconds. Even if you add a fibre-channel layer that still won’t take you much over 300 microseconds – and if you care that much about latency then Infiniband is here to help, bringing the figure back down to 100ms again. Only flash memory has the ultra-low latency necessary for database virtualisation.

IOPS – The Upper Limit of Storage

One thing you do not want to happen when you virtualise your databases onto a consolidated physical platform is to find the ceiling of your I/O capabilities. Every storage system has an upper limit of the number of I/O operations that it can perform per second (known as IOPS) and when that ceiling is reached (known as saturation) things can get painful.

Why is this relevant to database virtualisation? Because when you virtualise, you overlay virtual images of databases onto a single physical host system. It’s like taking a load of pictures of your databases and superimposing them on top of each other. Your underlying infrastructure has to be able to deliver the sum of all of that demand, or everything on it will suffer.

Worse still, the latency you experience from an underutilised storage system will not be the same latency you will experience when pushing it to its peak capacity. As the number of IOPS increases, so will the latency of each operation. Disk systems saturate far quicker than flash systems because of the cost of all that seek time and rotational latency discussed earlier. However, disk array vendors know a few tricks to try and avoid this – the most obvious being overprovisioning (using far more physical disks / spindles than are required for the usable capacity) and short stroking (only using the outer edge of each disk’s platter in order to reduce seek time and increase the throughput – the outer edge of the platter has a larger circumference and has a greater bit density meaning more data can be delivered per rotation). They are great tricks to increase the number of IOPS a disk array can deliver… great, that is, if you are the vendor, because it means you get to sell more disks. For the customer though, this means a bigger disk array using more power, requiring more cooling, taking up more valuable data centre space and – here’s the punchline – costing more but wasting huge amounts of raw capacity.

This is why flash memory makes the ideal solution for virtualisation. For a start the maximum IOPS figures for disks versus flash are in different neighbourhoods: a single 15k RPM SAS disk can deliver around 175 to 210 IOPS. Admittedly you would expect to see more than one disk in an array, but let’s face it there would have to be a lot of those disks to get up to the 1,000,000 IOPS that a Violin Memory 6616 memory array can deliver (around 5,000 disks assuming a figure of 200 for the HDD). The Violin array is only 3U high and uses a fraction of the power that you would need from the equivalent monster of a disk array.

Surely that makes flash a default choice, but there’s an additional consideration – the predictable latency. At high levels of IOPS flash performs exactly as predicted – latency rises in a linear fashion. But with a disk array latency rises exponentially, resulting in a “hockey-stick” style graph. Let’s have a look at the recent disk array vendor’s SPC1 benchmark for an example of this (and remember this set a world-record SPC benchmark so it’s a top of the range system):

[I’ll post more on this subject in a separate series as I want to share some more in-depth information on it, but I am kind of stuck at the moment waiting for more powerful lab gear… the servers I have had up until just aren’t powerful enough to make my Violin arrays break into a sweat…]

So flash memory gives you the IOPS capabilities you need for virtualisation – with the additional advantage of protecting you against unpredictable latency when running at high utilisation.

Oracle Licensing

The other major topic to talk about with database virtualisation is Oracle licensing. As everyone who has ever bought one will testify, Oracle licenses are very expensive. Since Oracle licenses by the CPU core and then applies a multiplication factor based on the CPU architecture (e.g. 0.5 for most x86 processors) you can quickly rack up a massive license bill (plus ongoing support) for some of the larger multi-core processors available on the market today. By virtualising, can you tie VMs containing Oracle databases to just a specific set of CPUs (Oracle calls this server partitioning), thus reducing cost?

The complicated answer is that it depends on the hypervisor. The simple answer is almost always no. In the world of Oracle there are two methods of server partitioning: soft and hard. Oracle’s list of approved hard partitioning technologies includes Solaris 10 Containers, IBM LPARs and Fujitsu PPARs – these are the ones where you license only a subset of your processors. Everything that’s not on the approved hard partitioning list requires every processor core to be licensed. And guess what’s on the list of soft partitioning products? VMware. You can read VMware’s own take on that here. The case of Oracle VM is a more complex one. In general OVM is considered soft partitioning and so a full compliment of licenses is required, but there are methods for configuring hard partitioning (both for OVM on SPARC and OVM on X86) so that this license saving can be achieved.

Flash memory has an angle here as well though. As I have discussed on my previous database consolidation posts, flash memory allows for a greater utilisation of your CPUs (because of the reduction in IOWAIT time), which means you can do more with the same resources. So by using flash you can either resist the need for more CPUs (and therefore more Oracle licenses) or actually reduce them.

Virtualisation Means Consolidation

There are some other challenges faced around virtualising databases. Many of them are the same as the challenges faced when consolidating databases: namely how to achieve a better density of databases per physical infrastructure (thereby realising more cost savings). One of the most important of these is memory (as in DRAM), which can often be the limiting factor when squeezing multiple virtualised databases into a confined physical space.

I’m not going to recycle the whole consolidation subject again here, since I (hopefully) covered all of these points in my series of articles on database consolidation. In this sense, you could consider database virtualisation a subset of database consolidation; effectively one of the methods for delivering it, although database virtualisation offers more than a simple consolidation platform.

I could probably write a whole load more on that subject, but as this blog entry is already long enough I’m going to just hand it over to my friends at Delphix instead.
