Oracle Exadata X5: The Road To Ten Billion Dollars

money

Now that the dust has settled on the announcement of Oracle’s new Exadata X5 Database Machine, I’ve been doing some research in order to update my History of Exadata post (it’ll be ready soon). While reviewing the datasheets and other collateral for the X5 I was struck by the meteoric increase in one particular statistic: the number of processor cores on each database server. Oracle is riding that Moore’s Law train all the way to the bank.

The thing is, the number of cores per database server is directly linked to the cost of licensing the Oracle Database for each Exadata machine – and that means trouble if you are the one paying the bills. Assuming you buy a full rack – and that you license every core in every database server (which is the most common choice, since only a very brave minority would consider the Oracle VM Trusted Partitions option), your license cost has been increasing by 50% for each of the last two Exadata releases (X3-2 to X4-2 to X5-2). Let’s have a look at that in graphical form (click on the image to enlarge):

Exadata DB License Cost Comparison X2-2 to X5-2

Let’s not forget here that I am only plotting the cost of licensing the database software. We are not taking into account the extra costs associated with paying for the hardware, licensing the storage servers or purchasing any of the pretty-much essential enterprise edition options such as Oracle RAC, partitioning, multitenancy or the diagnostic pack license. Nor are we considering the infamous 22% per annum software support costs. I’m also using the list price – which you would never expect to pay – but even if you used discounted prices the percentage increases would remain the same.

Anyway, after crunching the numbers it turns out there is good news and bad news…

Good News for Oracle

The good news for Oracle is that if Exadata continues to increase the number of cores at the rate of 50% extra per release, the list price for licensing the database software on the future X23-2 model will be $10.1 billion:

Exadata DB License Cost Projection

There’s no doubt about it – this will pay for a lot of yachts.

Bad News for Oracle

There is a downside though. As Kevin Closson has already shown, Oracle appears to be having trouble balancing the I/O capabilities of the X5 against this tremendously-increased compute power. Even after abandoning previous claims that a memory hierarchy with “low-cost disk” as the bottom tier would bring the “highest performance at the lowest cost” to customers, the new Oracle Exadata X5 “Extreme Flash” model (because apparently flash on its own isn’t enough, it has to be extreme flash) struggles to deliver an improvement in IOPS per flash device, as Kevin has shown.

exadata-x5-ef-price-per-io

Excerpt from the Oracle Exadata X5-2 Press Release

You wouldn’t think this from reading the press release, which promises “breakthrough performance and price per I/O” (emphasis added by me). Price per I/O, eh? That sounds like we take the overall price and divide it by the number of IOPS the system can deliver, right?

So let’s do that. And to be generous, let’s only look at the database license cost (ignoring all those other costs again) and take the maximum IOPS number from the datasheets (which in most cases is for unrealistic, 100% read only, fully cached workloads). How will it look? I’ll overlay it as a line (in blue) on top of the first graph:

Exadata DB License Cost Comparison

Well it turns out that the price per I/O is actually falling: it’s down from $1.71 on the X4-2 (HP) model to $1.65 on the X5-2 EF. But three and a half percent is not much of an improvement considering the 50% extra on the price tag, is it? And as for offering a “breakthrough” price per I/O, the X2-2 was better at only $1.52 per I/O per second!

Summary

In my view, something is not right about the balance between compute and storage on the Exadata X5. It feels as though Oracle is bumping up the compute power faster than would be architecturally prudent because this results in a higher purchase price. Maybe I’m wrong – I have no insider knowledge and can only speculate… but when the Exadata X23-2 finally comes out in a couple of decades time, maybe we’ll know for sure.

Footnote

The comments section of this article makes for interesting reading, with responses from a number of Oracle employees – although not necessarily speaking on behalf of the mothership. The noteworthy (not to mention calm and measured) comments come from the Exadata Product Manager, Gurmeet Goindi. In addition I’d like to draw your attention to the following two URLs:

Oracle Exadata X4 (Part 2): The All Flash Database Machine?

This article looks at the new Oracle Exadata X4-2 Database Machine from Big Red. In part one I looked at the changes made from the X3 model (more stuff) as well as the implications (more license bills). I also covered some of the confusing and bewildering descriptions Oracle has used to describe the flash capacity of the X4. To recap, here are some of the quotes made in various Oracle literature:

Source

Quote

Oracle Exadata X4-2 datasheet

44.8 TB of raw physical flash memory”

Oracle Exadata X4 Press Release

logical flash cache capacity to 88 TB

Oracle X3 to X4 Changes slide deck

“flash cache compression expands capacity to 88TB (raw)”

Oracle Exadata X4-2 datasheet

effective flash capacity of 440 TB

The source of this confusion appears to be the claim that a new feature called Exadata Smart Flash Cache Compression will allow more data to fit into flash. Noticeably absent from the press release and datasheet is the information that this new feature apparently requires the Advanced Compression license, potentially adding over $1m to the list price of a full rack (see slide 22 of this Oracle presentation).

This second part of the article will look at the implications of these changes, but to make things more interesting there’s one specific change I haven’t mentioned until now. And it’s the change that I think gives the biggest insight into Oracle’s thinking.

The Hybrid Database Machine

Picture courtesy of Dennis van Zuijlekom

Picture courtesy of Dennis van Zuijlekom

Right now, in the storage industry, there is a paradigm shift taking place as primary data moves from rusty old spinning disks to semiconductor-based NAND flash storage. Most storage vendors now offer all-flash arrays as part of their product lineup, although one or two still insist on the hybrid approach where data is located on disk but flash is used as a tiering or caching layer to improve performance.

Oracle, despite being one of the early adopters of flash with its Sun Oracle Database Machine (i.e. the Exadata v2), still uses the hybrid approach in Exadata. Each full rack contains 14 storage cells, with each cell containing 12 rotating magnetic disks as well as four PCIe flash cards (made by LSI and then rebranded as Sun). The disks can be bought in two options: high performance or high capacity (known as HP and HC respectively). It’s fair to say that the majority of customers buy the high performance version (* see comments below) – after all, Exadata is a very expensive solution aimed at solving performance problems, so performance is generally high up on a customer’s list of requirements.

Upgrading to Slower Performance?

See if you can spot the most important change to be made since the introduction of flash back in the Sun Oracle v2 (second generation) machine:

Product

Raw Flash

High Performance Disks

HP Disk Capacity

Sun Oracle Database Machine (v2)

5.3 TB

600GB 15,000 RPM

100 TB

Exadata Database Machine X2-2

5.3 TB

600GB 15,000 RPM

100 TB

Exadata Database Machine X3-2

22.4 TB

600GB 15,000 RPM

100 TB

Exadata Database Machine X4-2

44.8 TB

1.2TB 10,000 RPM

200 TB

Did you notice? In the X4 model storage cells, the HP disks have now doubled in capacity. That’s not the important bit though, it’s the sacrifice that Oracle had to make to do this: 10k RPM disk drives instead of 15k RPM. In Exadata X4, the high performance disks are slower than in Exadata X3.

How much slower are we talking? Well, the average rotational latency of a 15k RPM drive is 4ms. The average rotational latency for a 10k RPM drive is 6ms. That’s an extra 50% average rotational latency. Why on Earth would Oracle make that change? If customers wanted more capacity, couldn’t they just buy the storage expansion racks?

Design Dilemmas

The answer lies in two of Oracle’s fundamental design choices for the Exadata architecture:

  • the reliance on ASM software mirroring (meaning all data is stored either twice or three times), and
  • the use of flash as cache only (meaning all data in flash is eventually destaged to disk) rather than a tier of storage.

Remember that Oracle claims the Exadata Smart Flash Cache can now contain 88TB of data? But if all data on disk must be mirrored, then with ASM “normal redundancy” (i.e. double mirroring) the usable disk capacity with HP disks is just 90TB, according to the datasheet. If you want to perform zero-downtime upgrades then you need “high redundancy” (i.e. triple mirroring) which means even less capacity. What is the point of having less disk capacity than you have flash cache capacity? Clue: there is no point.

Which is where I finally get to my point. Oracle has taken the decision, almost by stealth, to make the Exadata X4 into an all-flash database machine. Except you still have to pay for the disks…

The All Flash Database Machine

Before we go any further, here’s a quote from Oracle’s Vice President of Product Management, Tim Shetler, discussing the increased flash capacity in Exadata X4:

exadata-disk-is-the-new-tape

Yes, that’s right: on Exadata X4, your entire database is now likely to be in flash. Yet in Exadata flash is only ever used as a cache, so the database in question is also going to be located on disk. And because ASM mirroring is required, it will actually be on disk twice – or, if you need zero-downtime upgrades, three times. Three copies on disk and one on flash? That doesn’t seem like the most efficient way to utilise what is, after all, extremely expensive storage.

What about the “inactive, colder data” that remains solely on disk? Well ok… let’s think about that for a minute. The flash cache, according to the sources in the first table above, holds between 88TB and 440TB of data – but, since it’s a cache, that data must be read from a persistent source somewhere. That source is the disks. If your disks contain “inactive, colder data” which doesn’t enter the cache, exactly how is that cache going to be efficiently populated? Keeping inactive data on Exadata’s disks is not only financially ruinous, it impacts the effect of having such an increased flash cache capacity.

Money Talks

dollarsWhat if Oracle ditched the disks and went for an all-flash architecture, as many storage vendors are now doing? Would that be a win for Oracle and it’s customers alike?

Whether it would be a win for customers is something that can be debated. What is undeniable though is the commercial problem Oracle would face if it made a technical decision to ditch the disks. Customers buying Oracle Exadata have to pay for Oracle Exadata Storage Software licenses… and guess what the licensing unit is? You license by the disk. Each storage cell has 12 disks and each full rack has 14 cells, meaning a full rack requires 168 storage licenses. These are currently listing at $10,000 per disk, bringing the total list price to $1.68m per rack.

Hmm. Admitting that the disks are no longer necessary could be an expensive problem, couldn’t it?

Oracle Exadata X4 (Part 1): Bigger Than It Looks?

One of the results of my employment history is that I tend to take particular interest in the goings on at a certain enterprise software (and hardware!) company based in Redwood Shores. I love watching Oracle’s announcements, press releases, product releases and financial statements to see what they are up to – and I am never more intrigued than when they release a new version of one of their Engineered Systems.

In part this is because I used to work with Exadata a lot and still know many people who do. But the main reason I like Engineered Systems releases is because I believe there is no better indicator of Oracle’s future strategy. Sifting through the deluge of marketing clod, product collateral, datasheets and press releases is like reading the tea leaves – and I’ve been doing it for a long time.

A few weeks ago Oracle released the new “fifth-generation” Exadata Database Machine X4-2, along with the usual avalanche of marketing. Over the last couple of weeks I’ve been throwing it all up in the air to see what lands. Part one of this post will look at the changes, while part two will look at the underlying message.

Database as a Service

The first thing to notice about Exadata X4 is that Oracle Marketing has fallen in love with a new term: database as a service. Previous versions of Exadata were described as being suitable for database consolidation, but in the X4 launch this phrase has been superseded:

oracle-x4-database-machine-press-release

Personally I see little difference between consolidation and DBaaS, but I assume the latter has more connotations of cloud computing and so is more fitting for a company attempting to build its own cloud empire. The idea is presumably that you buy Exadata for use in private clouds and use Oracle Cloud for your public cloud service. That’s all very well, but what I find somewhat surprising is the claim that X4 is optimized for OLTP, data warehousing and database-as-a-service. Surely those three workloads encompass everything? Claiming that you have built a solution which is optimized for everything is … shall we say bold?

More Processor Cores = More Licenses

As with previous releases, Oracle has frozen the price of both the Exadata hardware and the Exadata Storage Software licenses (see price lists). This seems like a great result for customers given that the X4 contains significantly faster hardware (see comments section). For example, the Exadata compute nodes change from having 8-core Sandy Bridge versions of the Intel Xeon processor to 12-core Ivy Bridge models. What never ceases to amaze me is the number of people who do not immediately see the consequence of this change: 50% more cores means 50% more database software licenses are required to run the equivalent X4 machine. So while the Exadata storage license cost remains unchanged, the cost of running Oracle Database Enterprise Edition increases by 50%, as does the cost of options such as Oracle RAC, Partitioning, Advanced Compression, the Diagnostic and Tuning Packs, etc etc. And it just so happens that the bits which increase by 50% happen to form the majority of the cost (and don’t forget that the 22% annual fee for support and maintenance will also be going up for them):

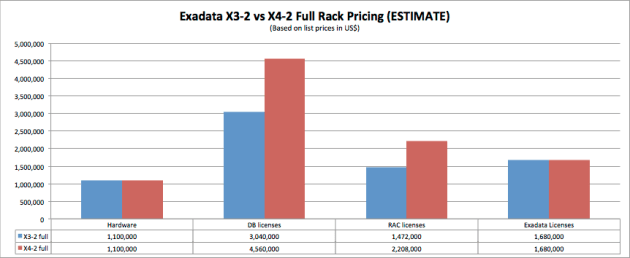

Prices are estimates - contact Oracle for correct pricing

Prices are estimates – contact Oracle for correct pricing

So far so boring. Nobody expected something for nothing, despite some of the altruistic statements made to the press. But there’s something much more interesting going on if you look at the X4’s use of flash memory…

Ever-Increasing Capacity

The new Exadata X4 model now contains 44.8TB of raw flash in the form of rebranded LSI Nytro PCIe cards placed in the storage cells. The term “raw“, as always in the storage industry, is used to denote the total amount of flash available prior to any overhead such as RAID, formatting, areas kept aside for garbage collection, etc. Once all of these overheads are added, you end up with a new figure known as “usable” – and it is this amount which describes the area where you can store data.

But hold on, what’s this new term “logical flash capacity” in the press release promising “88 TB per full rack”?

oracle-x4-database-machine-press-release-flash-claims

That’s twice the raw capacity! This is an incredible statement, because this so-called “logical” capacity is in fact a complete guess based on compression ratios – which are entirely dependant on your data. And it gets worse when you read the datasheet, which makes the following claim: an “effective flash capacity” of “Up to 448TB“! This is now ten times the raw capacity!

But what is an “effective flash capacity”? Let’s read the small print of the datasheet to find out… Apparently this is the size of the data files that can often be stored in Exadata and be accessed at the speed of flash memory.  No guarantees then, you just might get that, if you’re lucky. I thought datasheets where supposed to be about facts?

I am very uncomfortable about this sort of claim, partly because it carries no guarantees, but mainly because it often confuses customers. It’s not inconceivable that a potential customer will mistakenly think they are buying more raw flash capacity than they are actually are. You think not? Then take a look at  slide 21 of this Oracle presentation and consider the use of the word “raw”:

oracle-x4-database-machine-marketing-flash-claims

Maybe someone can explain to me how that statement can possibly be valid, because to me it looks utterly bewildering.

Exadata Smart Flash Cache Compression

The Exadata Smart Flash Cache has been a stalwart of the Exadata machine for many generations, so it is no surprise to see its feature set continually expanding. For the Exadata X4 release, the big feature appears to be Exadata Smart Flash Cache Compression (read more about it here), which allows Oracle to transparently compress data and store it on the PCIe flash cards. It is this feature which Oracle is describing when it claims a “logical flash cache capacity” of 88TB in the press release and the datasheet. Yet according to slide 22 of this Oracle presentation it is a feature which requires the Advanced Compression Option:

oracle-x4-database-machine-advanced-compression-required

As you can see, the author of this slide deck makes the rather brave assumption that most Exadata customers already have licenses for Advanced Compression (something I strongly contest). But either way, does it not seem reasonable that the press release and/or the datasheet should include this statement if they are going to promise such enlarged flash capacities? I’ve looked and looked, but I cannot see this mentioned – even in the infamous small print.

The thing is, right now on the Oracle Store, the Advanced Compression Option is retailing at $11,500 per core. Given that the new Exadata X4 machine now has 192 cores in a full rack (and taking into account the core multiplication factor of 0.5 for Intel Xeon), I calculate the list price of this option as being over $1.1m. Personally, I think that’s a large enough add-on that it ought to be mentioned up front.

Conclusion

As always with Oracle’s Exadata products, there is much to read between the lines. In the second part of this article I’ll be drawing my own conclusions about what the X4 means… stay tuned.

Engineered Systems – An Alternative View

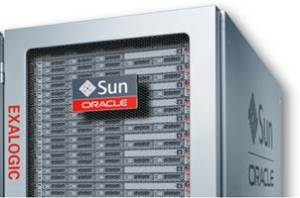

engineered-systemHave you seen the press recently? Or passed through an airport and seen the massive billboards advertising IT companies? I have – and I’ve learnt something from them: Engineered Systems are the best thing ever. I also know this because I read it on the Oracle website… and on the IBM website, although IBM likes to call them different names like “Workload Optimized Systems”. HP has its Converged Infrastructure, which is what Engineered Systems look like if you don’t make software. And even Microsoft, that notoriously hardware-free zone where software exists in a utopia unconstrained by nuts and bolts, has a SQL Server Appliance solution which it built with HP.

[I’m going to argue about this for a while, because that’s what I do. There is a summary section further down if you are pressed for time]

So clearly Engineered Systems are the future. Why? Well let’s have a look at the benefits:

Pre-Integration

It doesn’t make sense to buy all of the components of a solution and then integrate them yourself, stumbling across all sorts of issues and compatibility problems, when you can buy the complete solution from a single vendor. Integrating the solution yourself is the best of breed approach, something which seems to have fallout out of favour with marketing people in the IT industry. The Engineered Systems solution is pre-integrated, i.e. it’s already been assembled, tested and validated. It works. Other customers are using it. There is safety in the herd.

Optimization

In Oracle Marketing’s parlance, “Hardware and software, engineered to work together“. If the same vendor makes everything in the stack then there are more opportunities to optimize the design, the code, the integration… assumptions no longer need to be made, so the best possible performance can be squeezed out of the complete package.

terms-and-conditions-applyFaster Deployment

Well… it’s already been built, right? See the Pre-Integration section above and think about all that time saved: you just need to wheel it in, connect up the power and turn it on. Simples.

Of course this isn’t completely the case if you also have to change the way your entire support organisation works in order to support the incoming technology, perhaps by retraining whole groups of operations staff and creating an entirely new specialised role to manage your new purchase. In fact, you could argue that the initial adoption of a technology like Exadata is so disruptive that it is much more complicated and resource-draining than building those best of breed solutions your teams have been integrating for decades. But once you’ve retrained all your staff, changed all your procedures, amended your security guidelines (so the DataBase Machine Administrator has access to all areas) and fended off the poachers (DBMAs get paid more than DBAs) you are undoubtedly in the perfect position to start benefiting from that faster deployment. Well done you.

And then there’s the migration from your existing platform, where (to continue with Exadata as an example) you have to upgrade your database to 11.2, migrate to Linux, convert to ASM, potentially change the endianness of your data and perhaps strip out some application hints in order to take advantage of features like Smart Scan. That work will probably take many times longer than the time saved by the pre-integration…

Single-Vendor Benefits

The great thing about having one vendor is that it simplifies the procurement process and makes support easier too – the infamous “One Throat To Choke” cliché.

Marketing Overdrive

If you believe the hype, the engineered system is the future of I.T. and anyone foolish enough to ignore this “new” concept is going to be left behind. So many of the vendors are pushing hard on that message, but of course there is one particular company with an ultra-aggressive marketing department who stands out above the rest: the one that bet the farm on the idea. Let’s have a look at an example of their marketing material:

Video hosted by YouTube under Standard Terms of Service. Content owner: Oracle Corporation

Now this is all very well, but I have an issue with Engineered Systems in general and this video in particular. Oracle says that if you want a car you do not go and buy all the different parts from multiple, disparate vendors and then set about putting them together yourself. Leaving aside the fact that some brave / crazy people do just that, let’s take a second to consider this. It’s certainly true that most people do not buy their cars in part form and then integrate them, but there is an important difference between cars and the components of Oracle’s Engineered Systems range: variety.

If we pick a typical motor vehicle manufacturer such as Ford or BMW, how many ranges of vehicle do they sell? Compact, family, sports, SUV, luxury, van, truck… then in each range there are many models, each model comes in many variants with a huge list of options that can be added or taken away. Why is there such a massive variety in the car industry? Because choice and flexibility are key – people have different requirements and will choose the product most suitable to their needs.

Looking at Oracle’s engineered systems range, there are six appliances – of which three are designed to run databases: the Exadata Database Machine, the SuperCluster and the ODA. So let’s consider Exadata: it comes in two variants, the X3-2 and the X3-8. The storage for both is identical: a full rack contains 14x Exadata storage servers each with a standard configuration of CPUs, memory, flash cards and hard disk drives. You can choose between high performance or high capacity disk drives but everything else is static (and the choice of disk type affects the whole rack, not just the individual server). What else can you change? Not a lot really – you can upgrade the DRAM in the database servers and choose between Linux or Solaris, but other than that the only option is the size of the rack.

The Exadata X3-2 comes in four possible rack sizes: eighth, quarter, half and full; the X3-8 comes only as a full rack. These rack sizes take into account both the database servers and the storage servers, meaning the balance of storage to compute power is fixed. This is a critical point to understand, because this ratio of compute to storage will vary for each different real-world database. Not only that, but it will vary through time as data volumes grow and usage patterns change. In fact, it might even vary through temporal changes such as holiday periods, weekends or simply just the end of the day when users log off and batch jobs kick in.

storage-or-computeFlexibility

And there’s the problem with the appliance-based solution. By definition it cannot be as flexible as the bespoke alternative. Sure I don’t want to construct my own car, but I don’t need to because there are so many options and varieties on the market. If the only pre-integrated cars available were the compact, the van and the truck I might be more tempted to test out my car-building skills. To continue using Exadata as the example, it is possible to increase storage capacity independent of the database node compute capacity by purchasing a storage expansion rack, but this is not simply storage; it’s another set of servers each containing two CPU sockets, DRAM, flash cards, an operating system and software, hard disks… and of course a requirement to purchase more Exadata licenses. You cannot properly describe this as flexibility if, as you increase the capacity of one resource, you lose control of many other resources. In the car example, what if every time I wanted to add some horsepower to the engine I was also forced to add another row of seats? It would be ridiculous.

Summary: Two Sides To Every Coin

Engineered Systems are a design choice. Like all choices they have pros and cons. There are alternatives – and those alternatives also have pros and cons. For me, the Engineered System is one end of a sliding scale where hardware and software are tightly integrated. This brings benefits in terms of deployment time and performance optimization, but at the expense of flexibility and with potential vendor-lockin. The opposite end of that same scale is the Software Defined Data Centre (SDDC), where hardware and software are completely independent: hardware is nothing more than a flexible resource which can be added or removed, controlled and managed, aggregated and pooled… The properties and characteristics of the hardware matter, but the vendor does not. In this concept, data centres will simply contain elastic resources such as compute, storage and networking – which is really just an extension of the cloud paradigm that everyone has been banging on about for some time now.

engineered-systems-or-software-defined-data-centreIt’s going to be interesting to see how the engineered system concept evolves: whether it will adapt to embrace ideas such as the SDDC or whether your large, monolithic engineered system will simply become another tombstone in the corner of your data centre. It’s hard to say, but whatever you do I recommend a healthy dose of scepticism when you read the marketing brochure…

More on Exadata X3 “Database In-Memory” (but not by me)

Not a real post – but a recommendation… Kevin Closson, former Performance Architect within Oracle’s Exadata development organisation, has (finally!) written a blog post about the new Exadata X3 model with it’s claimed “Database In-Memory” marketing title.

For the history of Exadata click here. But more importantly, for the insider view, click here:

Oracle Exadata X3 Database In-Memory Machine: Timely Thoughtful Thoughts For The Thinking Technologist

Recommended reading…

In Memory Databases: HANA, Exadata X3 and Flash Memory (Part 2)

In the first part of this blog series on In Memory Databases (IMDBs) I talked about the definition of “memory” and found it surprisingly hard to pin down. There was no doubt that Dynamic Random Access Memory (DRAM), such as that found in most modern computers, fell into the category of memory whilst disk clearly did not. The medium which caused the problem was NAND flash memory, such as that found in consumer devices like smart phones, tablets and USB sticks or enterprise storage like the flash memory arrays made by my employer Violin Memory.

There is no doubt in my mind that flash memory is a type of memory – otherwise we would have to have a good think about the way it was named. My doubts are along different lines: if a database is running on flash memory, can it be described as an IMDB? After all, if the answer is yes then any database running on Violin Memory is an In Memory Database, right?

What Is An In Memory Database?

As always let’s start with the stupid questions. What does an IMDB do that a non-IMDB database does not do? If I install a regular Oracle database (for example) it will have a System Global Area (SGA) and a Program Global Area (PGA), both of which are areas set aside in volatile DRAM in order to contain cached copies of data blocks, SQL cursors and sorting or hashing areas. Surely that’s “in-memory” in anyone’s definition? So what is the difference between that and, for example, Oracle TimesTen or SAP HANA?

Let’s see if the Oracle TimesTen documentation can help us:

“Oracle TimesTen In-Memory Database operates on databases that fit entirely in physical memory”

That’s a good start. So with an IMDB, the whole dataset fits entirely in physical memory. I’m going to take that sentence and call it the first of our fundamental statements about IMDBs:

IMDB Fundamental Requirement #1:
In Memory Databases fit entirely in physical memory.

But if I go back to my Oracle database and ensure that all of the data fits into the buffer cache, surely that is now an In Memory Database?

Maybe an IMDB is one which has no physical files? Of course that cannot be true, because memory is (or can be) volatile, so some sort of persistent later is required if the data is to be retained in the event of a power loss. Just like a “normal” database, IMDBs still have to have datafiles and transaction logs located on persistent storage somewhere (both TimesTen and SAP HANA have checkpoint and transaction logs located on filesystems).

So hold on, I’m getting dangerously close to the conclusion that an IMDB is simply a normal DB which cannot grow beyond the size of the chunk of memory it has been allocated. What’s the big deal, why would I want that over say a standard RDBMS?

Why is an In-Memory Database Fast?

Actually that question is not complete, but long questions do not make good section headers. The question really is: why is an In Memory Database faster than a standard database whose dataset is entirely located in memory?

Back to our new friend the Oracle TimesTen documentation, with the perfectly-entitled section “Why is Oracle TimesTen In-Memory Database fast?“:

“Even when a disk-based RDBMS has been configured to hold all of its data in main memory, its performance is hobbled by assumptions of disk-based data residency. These assumptions cannot be easily reversed because they are hard-coded in processing logic, indexing schemes, and data access mechanisms.

TimesTen is designed with the knowledge that data resides in main memory and can take more direct routes to data, reducing the length of the code path and simplifying algorithms and structure.”

This is more like it. So an IMDB is faster than a non-IMDB because there is less code necessary to manipulate data. I can buy into that idea. Let’s call that the second fundamental statement about IMDBs:

IMDB Fundamental Requirement #2:
In Memory Databases are fast because they do not have complex code paths for dealing with data located on storage.

I think this is probably a sufficient definition for an IMDB now. So next let’s have a look at the different implementations of “IMDBs” available today and the claims made by the vendors.

Is My Database An In Memory Database?

Any vendor can claim to have a database which runs in memory, but how many can claim that theirs is an In Memory Database? Let’s have a look at some candidates and subject them to analysis against our IMDB fundamentals.

1. Database Running in DRAM – e.g. SAP HANA

I have no experience of Oracle TimesTen but I have been working with SAP HANA recently so I’m picking that as the example. In my opinion, HANA (or NewDB as it was previously known) is a very exciting database product – not especially because of the In Memory claims, but because it was written from the ground up in an effort to ignore previous assumptions of how an RDBMS should work. In contrast, alternative RDBMS such as Oracle, SQL Server and DB/2 have been around for decades and were designed with assumptions which may no longer be true – the obvious one being that storage runs at the speed of disk.

The HANA database runs entirely in DRAM on Intel x86 processors running SUSE Linux. It has a persistent layer on storage (using a filesystem) for checkpoint and transaction logs, but all data is stored in DRAM along with an additional allocation of memory for hashing, sorting and other work area stuff. There are no code paths intended to decide if a data block is in memory or on disk because all data is in memory. Does HANA meet our definition of an IMDB? Absolutely.

What are the challenges for databases running in DRAM? One of the main ones is scalability. If you impose a restriction that all data must be located in DRAM then the amount of DRAM available is clearly going to be important. Adding more DRAM to a server is far more intrusive than adding more storage, plus servers only have a limited number of locations on the system bus where additional memory can be attached. Price is important, because DRAM is far more expensive than storage media such as disk or flash. High Availability is also a key consideration, because data stored in memory will be lost when the power goes off. Since DRAM cannot be shared amongst servers in the same way as networked storage, any multiple-node high availability solution has to have some sort of cache coherence software in place, which increases the complexity and moves the IMDB away from the goal of IMDB Fundamental #2.

Gong back to HANA, SAP have implemented the ability to scale up (adding more DRAM – despite Larry’s claims to the contrary, you can already buy a 100TB HANA database system from IBM) as well as to scale out by adding multiple nodes to form a cluster. It is going to be fascinating to see how the Oracle vs SAP HANA battle unfolds. At the moment 70% of SAP customers are running on Oracle – I would expect this number to fall significantly over the next few years.

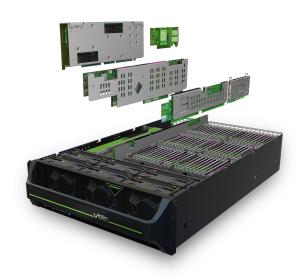

2. Database Running on Flash Memory – e.g. on Violin Memory

Now this could be any database, from Oracle through SQL Server to PostgreSQL. It doesn’t have to be Violin Memory flash either, but this is my blog so I get to choose. The point is that we are talking about a database product which keeps data on storage as well as in memory, therefore requiring more complex code paths to locate and manage that data.

The use of flash memory means that storage access times are many orders of magnitude faster than disk, resulting in exceptional performance. Take a look at recent server benchmark results and you will see that Cisco, Oracle, IBM, HP and VMware have all been using Violin Memory flash memory arrays to set new records. This is fast stuff. But does a (normal) database running on flash memory meet our fundamental requirements to make it an IMDB?

First there is the idea of whether it is “memory”. As we saw before this is not such a simple question to answer. Some of us (I’m looking at you Kevin) would argue that if you cannot use memory functions to access and manipulate it then it is not memory. Others might argue that flash is a type of memory accessed using storage protocols in order to gain the advantages that come with shared storage, such as redundancy, resilience and high availability.

Luckily the whole question is irrelevant because of our second fundamental requirement, which is that the database software does not have complex code paths for dealing with blocks located on storage. Bingo. So running an Oracle database on flash memory does not make it an In Memory Database, it just makes it a database which runs at the speed of flash memory. That’s no bad thing – the main idea behind the creation of IMDBs was to remove the bottlenecks created by disk, so running at the speed of flash is a massive enhancement (hence those benchmarks). But using our definitions above, Oracle on flash does not equal IMDB.

On the other hand, running HANA or some other IMDB on flash memory clearly has some extra benefits because the checkpoint and transactional logs will be less of a bottleneck if they write data to flash than if they were writing to disk. So in summary, the use of flash is not the key issue, it’s the way the database software is written that makes the difference.

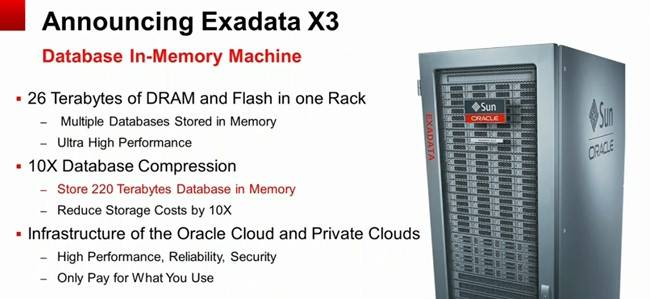

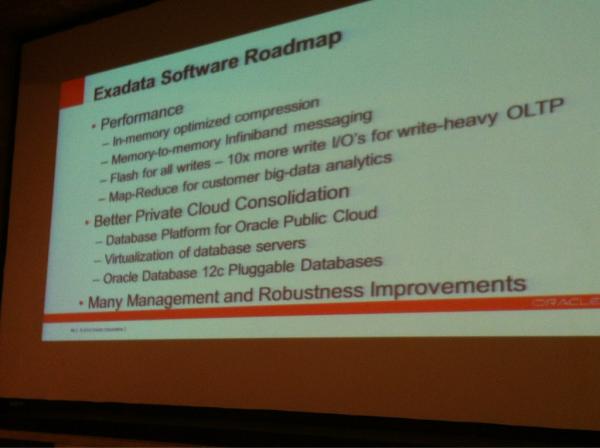

3. Database Accessing Remote DRAM and Flash Memory: Oracle Exadata X3

Why am I talking about Oracle Exadata now? Because at the recent Oracle OpenWorld a new version of Exadata was announced, with a new name: the Oracle Exadata X3 Database In-Memory Machine. Regular readers of my blog will know that I like to keep track of Oracle’s rebranding schemes to monitor how the Exadata product is being marketed, and this is yet another significant renaming of the product.

According to the press release, “[Exadata] can store up to hundreds of Terabytes of compressed user data in Flash and RAM memory, virtually eliminating the performance overhead of reads and writes to slow disk drives“. Now that’s a brave claim, although to be fair Oracle is at least acknowledging that this is “Flash and RAM memory”. On the other hand, what’s this about “hundreds of Terabytes of compressed user data”? Here’s the slide from the announcement, with the important bit helpfully highlighted in red (by Oracle not me):

Also note the “26 Terabytes of DRAM and Flash in one Rack” line. Where is that DRAM and Flash? After all, each database server in an Exadata X3-2 has only 128GB DRAM (upgradeable to 256GB) and zero flash. The answer is that it’s on the storage grid, with each storage cell (there are 14 in a full rack) containing 1.6TB flash and 64GB DRAM. But the database servers cannot directly address this as physical memory or block storage. It is remote memory, accessed over Infiniband with all the overhead of IPC, iDB, RDS and Infiniband ZDP. Does this make Exadata X3 an In Memory Database?

I don’t see how it can. The first of our fundamental requirements was that the database should fit entirely in memory. Exadata X3 does not meet this requirement, because data is still stored on disk. The DRAM and Flash in the storage cells are only levels of cache – at no point will you have your entire dataset contained only in the DRAM and Flash*, otherwise it would be pretty pointless paying for the 168 disks in a full rack – even more so because Oracle Exadata Storage Licenses are required on a per disk basis, so if you weren’t using those disks you’d feel pretty hard done by.

[*see comments section below for corrections to this statement]

But let’s forget about that for a minute and turn our attention to the second fundamental requirement, which is that the database is fast because it does not have complex code paths designed to manage data located both in memory or on disk. The press release for Exadata X3 says:

“The Oracle Exadata X3 Database In-Memory Machine implements a mass memory hierarchy that automatically moves all active data into Flash and RAM memory, while keeping less active data on low-cost disks”

This is more complexity… more code paths to handle data, not less. Exadata is managing data based on its usage rate, moving it around in multiple different levels of memory and storage (local DRAM, remote DRAM, remote flash and remote disks). Most of this memory and storage is remote to the database processes representing the end users and thus it incurs network and communication overheads. What’s more, to compound that story, the slide up above is talking about compressed data, so that now has to be uncompressed before being made available to the end user, navigating additional code paths and incurring further overhead. If you then add the even more complicated code associated with Oracle RAC (my feelings on which can be found here) the result is a multi-layered nest of software complexity which stores data in many different places.

Draw your own conclusions, but in my opinion Exadata X3 does not meet either of our requirements to be defined as an In Memory Database.

Conclusion

“In Memory” is a buzzword which can be used to describe a multitude of technologies, some of which fit the description better than others. Flash memory is a type of memory, but it is also still storage – whereas DRAM is memory accessed directly by the CPU. I’m perfectly happy calling flash memory a type of “memory”, even referring to it performing “at the speed of memory” as opposed to the speed of disk, but I cannot stretch to describing databases running on flash as “In Memory Databases”, because I believe that the only In Memory Databases are the ones which have been designed and written to be IMDBs from the ground up.

Anything else is just marketing…

Thoughts on In Memory Databases (Part 1)

Everyone is talking about In Memory at the moment. On blogs, in tweets, in the press, in the Oracle marketing department, in books by SAP employees, even my Violin colleagues… it’s everywhere. What can I possibly add that will be of any value?

Well, how about owning up to something: I find myself in a bit of a quandary on this subject. On the one hand it’s a new buzzword, which means that a) it’s got everyone’s attention, and b) many people with their own agenda will seek to use it to their advantage… but on the other hand, given the nature of my employment (I work for Violin Memory, purveyors of flash memory systems), it seems like something we ought to be talking about.

As anyone who works in the IT industry knows (and perhaps it’s the same in other industries), we love a buzzword. Cloud, Analytics, Big Data, In Memory, Transformation… all of these phrases have been used at one time or another to try and wring cash out of customers who may or may not need the services and products they imagine the phrase represents. Even back at the end of the last millenium consultants worldwide were making huge amounts of money out of exploiting the phrase “Y2K”, some with more honourable intentions than others. I remember my old school received a letter from a “Y2K conformance specialist” informing them that this person could visit and inspect their football pitches to ensure they were “Y2K compliant”… (true story!)

So if buzzwords are prone to misuse, maybe the first thing we need to do is explore what “In Memory” really means? In fact, rewind a step – what do we mean when we say “Memory”?

What Is Memory?

It’s a basic question, but a good definition is surprisingly hard to pin down. Clearly this is an IT blog so (despite the deceiving picture above) I am only interested in talking about computer memory rather than the stuff in my head which stops working after I drink tequila. The definition of this term in the Free Online Dictionary of Computing is:

memory: These days, usually used synonymously with Random Access Memory or Read-Only Memory, but in the general sense it can be any device that can hold data in machine-readable format.

So that’s any device that can hold data in machine-readable format. So far so ambiguous. And of course that is the perfect situation for any would-be freeloader to exploit, since the less well-defined a definition is, the more room there is to manoeuvre any product into position as a candidate for that description.

Here’s what most people think of when they talk about computer memory… DRAM:

Dynamic Random Access Memory (DRAM)

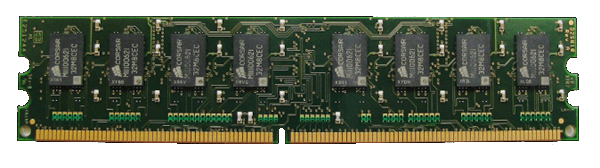

This is Dynamic Random Access Memory – and it’s most likely what’s in your laptop, your desktop and your servers. You know all about this stuff – it’s fast, it’s volatile (i.e. the data stored on it is lost when the power goes off) and it’s comparatively expensive to say… disk, for which many orders of magnitude more are available at the same price point.

But now there is a new type of “memory” on the market, NAND flash memory. Actually it’s been around for over 25 years (read this great article for more details) but it is only now that we are seeing it being adopted en mass in data-centres, as well as being prevalent in consumer devices – the chances are your phone contains NAND flash, your tablet (if you have one) and maybe your computer if you are fortunate enough to have an SSD drive in it.

Toshiba NAND Flash

Flash memory, unlike DRAM, is persistent. That means when the power goes, the data remains. Flash access speeds are measured in microseconds – let’s say around 100 microseconds for a single random access. That’s significantly faster than disk, which is measured in (multiple) milliseconds – but still slower than DRAM, for which you would expect an access in around 100 nanoseconds. Flash is available in many forms, from USB devices and SSDs which fit into normal hard drive bays, through PCIe cards which connect direct to the system bus, and on to enterprise-class storage arrays such as those made by my employer like the Violin Memory 6000 series array.

Is flash a type of memory? It certainly fits the dictionary description above. But if you run something on flash, can you describe that something as now running “in memory”? You could argue the point either way I suppose.

Since we don’t seem to be doing well with defining what memory is, let’s change tack and talk about what it definitely isn’t. And that’s simple, because it definitely isn’t disk.

Disk

Whether it’s part of the formal definition or not, almost anyone would assume that memory is fast and non-mechanical, i.e. it has no moving parts. It is all semiconductors and silicon, not motors and magnets. A hard disk drive, with its rotating platters and moving actuator arm, is about the most un-memory-like way you can find to store your data, short of putting it on a big reel of tape. And, consistent with our experience of memory versus non-memory devices, it’s slow. In fact, every disk array vendor in the industry stuffs their enterprise disk arrays full of DRAM caches to make up for the slow performance of disk. So memory is something they use to mask the speed of their non-memory-based storage. Hang on then, if you have a small enough dataset so that the majority of your disk reads are coming from your disk array cache, does that mean you are running “in memory” too? No of course not, but the ambiguity is there to be exploited.

Primary Storage versus Secondary Storage

Since we are struggling with a formal definition of memory, perhaps another way to look at it is in terms of primary storage and secondary storage. The main difference here is that primary storage is directly addressable by the CPU, whereas secondary storage is addressed through input/output channels. Is that a good way of distinguishing memory from non-memory? It certainly works with DRAM, which ends up in the primary storage category, as well as disk, which ends up in the secondary storage category. But with flash it is a less successful differentiator.

The first problem is that as previously mentioned flash is available in multiple different forms. PCIe flash cards are directly addressable by the CPU whilst SSDs slot into hard drive bays and are accessed using storage protocols. In fact, just looking at the Violin Memory 6000 series array around which my day job revolves, connectivity options include PCIe direct attached, fibre-channel and Infiniband, meaning it could easily fit into either of the above categories.

What’s more, if you think of primary storage as somehow being faster than secondary storage, the Infiniband connectivity option of the Violin array is only about 50-100 microseconds slower than the PCIe version, yet brings a wealth of additional benefits such as high availability. It’s hard to think of a reason why you would choose the direct attached version of that with Infiniband.

Volatile versus Persistent

Maybe this is a better method of differentiating? Perhaps we can say that memory is that which is volatile, i.e. data stored on it will be lost when power is no longer available. The alternative is persistent storage, where data exists regardless of the power state. Does that make sense?

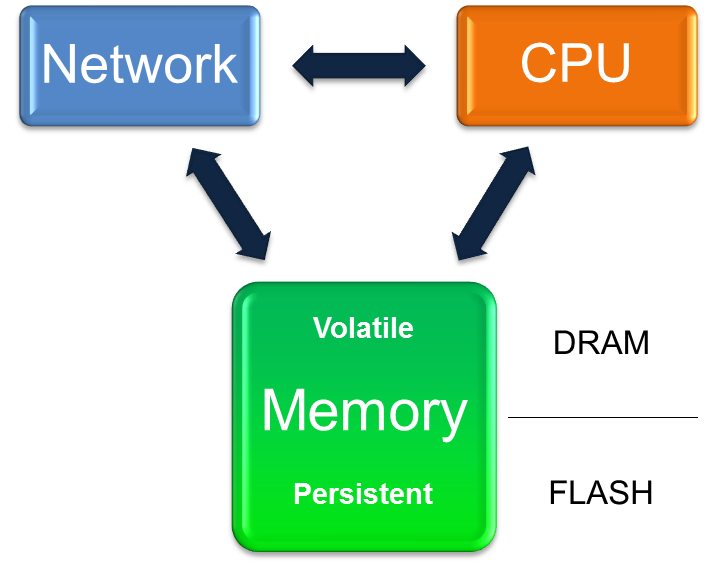

Not really. Think about your traditional computer, whether it’s a desktop or server. You have four high-level resources: CPU to do the work, network to communicate with the outside world, disk to store your data (the persistence layer). Why do you have memory in the form of DRAM? Why commit extra effort to managing a volatile store of data, much of which is probably duplicated on the persistence layer?

DRAM exists to drive up CPU utilisation. Processor speeds have famously doubled every couple of years or so. Network speeds have also increased drastically since the days of the 56k modem I used to struggle with in the 1990’s. Disk hasn’t – nowhere near in fact. Sure, capacity has increased – and speeds have slowly struggled upwards until they reached the limit of the 15k RPM drive, but in comparison to CPU improvements disk has been absolutely stagnant. So your computer is stuffed full of DRAM because, if it weren’t, the processors would spend all their time waiting for I/O instead of doing any work. By keeping as much data in volatile DRAM as possible, the speed of access is increased by around five orders of magnitude, resulting in CPUs which can spend more time working and less time waiting.

In the world of flash memory things are slightly different. DRAM is still necessary to maintain CPU utilisation, because flash is around two-and-a-half to three orders of magnitude slower than DRAM. But does it make sense to assume that “memory” is therefore only applicable to volatile data storage? What if a hypothetical persistent flash medium arrived with DRAM access speeds? Would we refuse to say that something running on this magic new media was running “In Memory”?

I don’t have an answer, only an opinion. My opinion is that memory is solid-state semiconductor-based storage and can be volatile or persistent. DRAM is a type of memory, but not the only type. Flash is a type of memory, while disk clearly is not.

So with that in mind, in the next part of this blog series I’m going to look at In Memory Database technologies and describe what I see as the three different architectures of IMDB that are currently available. As a taster, one of them is SAP HANA, one of them involves Violin Memory and the third one is the new Oracle Exadata X3 “Database In-Memory Machine”. And as a conclusion I will have to make a decision about the quandary I mentioned at the start of this article: should we at Violin claim a piece of the “In Memory” pie?

<Part Two of this blog series is located here>
